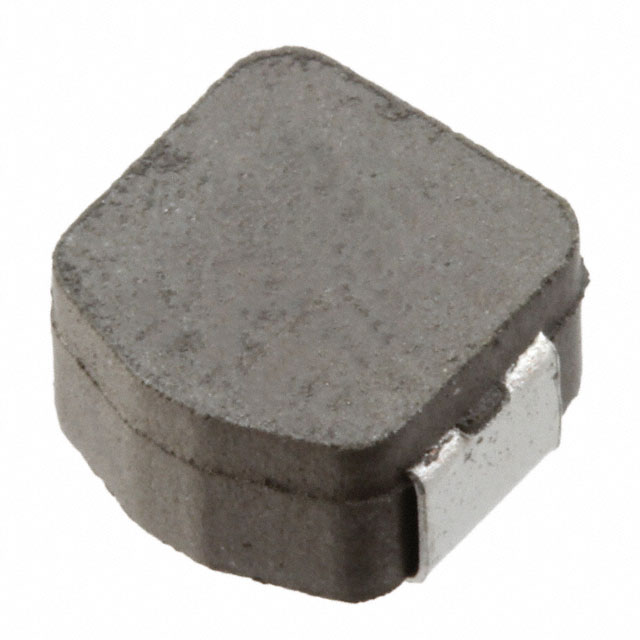

MPLCG0530L2R2 - MPLCG0530L2R2

MPLCG0530L2R2

Active
KEMET

GENERAL PURPOSE INDUCTOR, 2.2UH, 20%, 1 ELEMENT, COMPOSITE-CORE, SMD, CHIP, 2220

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMPLCG0530L2R2 SpecDatasheet+1
MPLCG0530L2R2 - MPLCG0530L2R2

MPLCG0530L2R2

Active
KEMET

GENERAL PURPOSE INDUCTOR, 2.2UH, 20%, 1 ELEMENT, COMPOSITE-CORE, SMD, CHIP, 2220

Deep-Dive with AI

DocumentsMPLCG0530L2R2 SpecDatasheet+1

Technical Specifications

Parameters and characteristics for this part

SpecificationMPLCG0530L2R2
Current - Saturation (Isat)5 A
Current Rating (Amps)4.5 A
DC Resistance (DCR) [Max]36.4 mOhm
FeaturesLow DCR, Low Loss
Height - Seated (Max)3 mm
Height - Seated (Max) [Max]0.118 in
Inductance2.2 µH
Inductance Frequency - Test100 kHz
Material - CoreMetal Composite
Mounting TypeSurface Mount
Operating Temperature [Max]125 °C
Operating Temperature [Min]-40 °C
Package / CaseNonstandard
ShieldingShielded
Size / Dimension [x]0.217 "
Size / Dimension [x]5.5 mm
Size / Dimension [y]5 mm
Size / Dimension [y]0.197 "
Tolerance20 %
TypeWirewound, Drum Core

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 1.92
10$ 1.63
25$ 1.50
50$ 1.34
100$ 1.12
250$ 1.09
500$ 1.02
1000$ 0.96
Digi-Reel® 1$ 1.92
10$ 1.63
25$ 1.50
50$ 1.34
100$ 1.12
250$ 1.09
500$ 1.02
1000$ 0.96
Tape & Reel (TR) 3500$ 0.93
7000$ 0.89
10500$ 0.85
NewarkEach (Supplied on Full Reel) 2000$ 0.97
4000$ 0.87
6000$ 0.84
10000$ 0.81

Description

General part information

MPLCG0530 Series

2.2 µH Shielded Drum Core, Wirewound Inductor 4.5 A 36.4mOhm Max Nonstandard Low DCR, Low Loss
