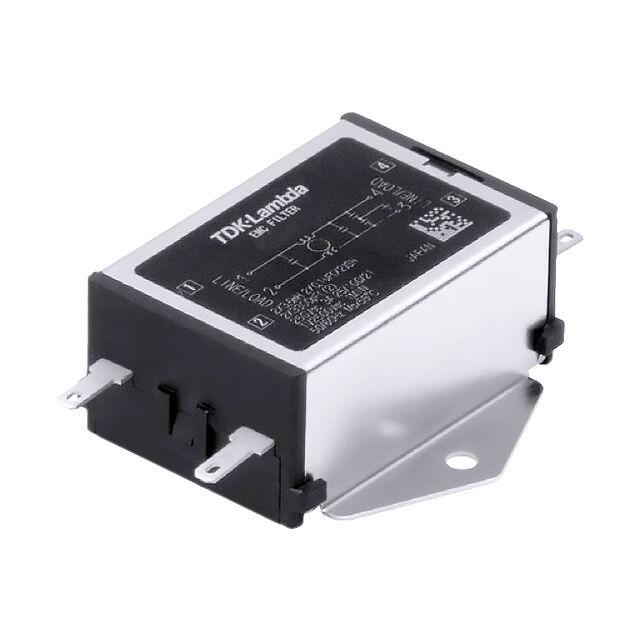

RSAL-2002AL - RSAL-(RSEL) Series

RSAL-2002AL

Active
TDK-LAMBDA

POWER LINE FILTER, GENERAL PURPOSE, 250 V, 2 A, SINGLE PHASE, 1 STAGE, CHASSIS MOUNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetUser Manual EN+1
RSAL-2002AL - RSAL-(RSEL) Series

RSAL-2002AL

Active
TDK-LAMBDA

POWER LINE FILTER, GENERAL PURPOSE, 250 V, 2 A, SINGLE PHASE, 1 STAGE, CHASSIS MOUNT

Deep-Dive with AI

DocumentsDatasheetUser Manual EN+1

Technical Specifications

Parameters and characteristics for this part

SpecificationRSAL-2002AL
ApplicationsGeneral Purpose
Approval AgencyCSA, EN, UL
ConfigurationSingle Stage
Current2 A
Filter TypeSingle Phase
Mounting TypeChassis Mount
Operating Temperature [Max]85 °C
Operating Temperature [Min]-25 °C
Termination StyleQuick Connect
Voltage - Rated AC250 V
Voltage - Rated DC250 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 9.96
10$ 9.73
25$ 9.31
50$ 9.10
NewarkEach 1$ 9.96
10$ 9.73
25$ 9.31
50$ 9.10

Description

General part information

RSAL-2002 Series

Single Phase EMC/EMI Line Filter 2 A 250V 250V Single Stage Quick Connect
