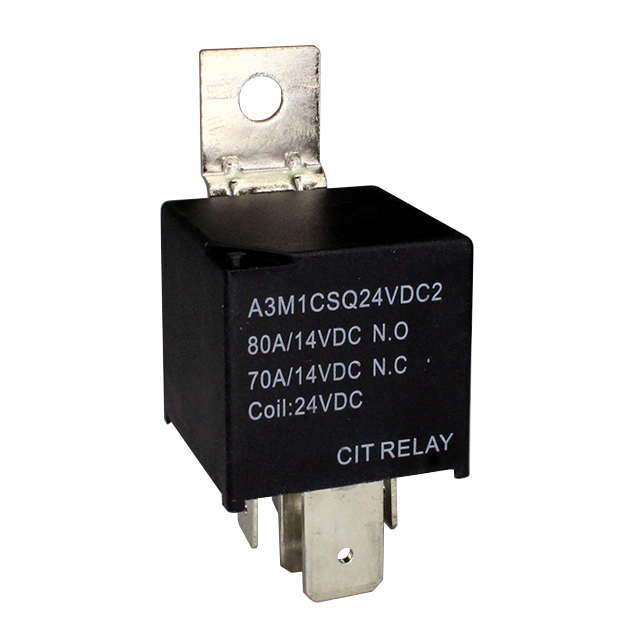

A3M1CSQ24VDC2
ActiveCIT Relay and Switch
RELAY AUTOMOTIVE SPDT 80A 24V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
A3M1CSQ24VDC2
ActiveCIT Relay and Switch
RELAY AUTOMOTIVE SPDT 80A 24V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | A3M1CSQ24VDC2 |
|---|---|
| Coil Current | 75 mA |
| Coil Power | 1.8 W |
| Coil Resistance | 320 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 24 VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Material | Silver Tin Oxide Indium Oxide (AgSnOInO) |
| Contact Rating (Current) | 80 A |
| Features | Sealed - Fully |
| Mounting Type | Chassis Mount |
| Must Operate Voltage | 16.8 VDC |
| Must Release Voltage | 2.4 VDC |
| Operate Time | 7 ms |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Release Time | 5 ms |
| Switching Voltage | 75 VDC |
| Termination Style | Quick Connect - Multiple Sizes |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 3.77 | |
| 20 | $ 3.53 | |||
| 40 | $ 2.98 | |||
| 80 | $ 2.82 | |||
| 240 | $ 2.76 | |||
Description
General part information
A3M1CSQ Series
RELAY AUTOMOTIVE SPDT 80A 24V
Documents
Technical documentation and resources
