R30BLK-1000

Active

OK INDUSTRIES

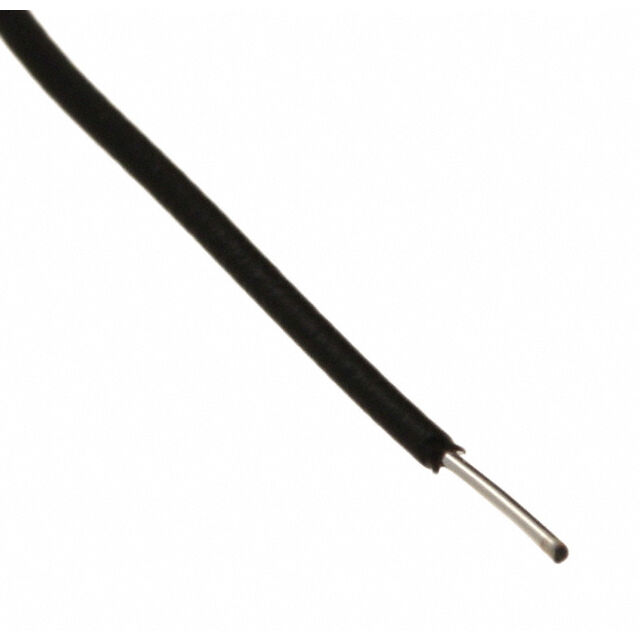

WIRE, WRAPPING WIRE, PVDF, BLACK, 30 AWG, 1000 FT

Search across all available documentation for this part.

Active

OK INDUSTRIES

WIRE, WRAPPING WIRE, PVDF, BLACK, 30 AWG, 1000 FT

Technical Specifications

Parameters and characteristics for this part

Specification	R30BLK-1000

Conductor Diameter [diameter]	0.25 mm
Conductor Diameter [diameter]	0.01 in
Conductor Material	Copper, Bare
Conductor Plating	Silver
Jacket (Insulation) Diameter [diameter]	0.019 in
Jacket (Insulation) Diameter [diameter]	0.5 mm
Jacket (Insulation) Material	Polyvinylidene Fluoride (PVDF)
Jacket Color	Black
Length	1000 ft
Length	304.8 m
Operating Temperature	105 C
Ratings	VW-1, UL Style 1423
Wire Gauge	30 AWG

Part	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Material	Conductor Diameter [diameter]	Conductor Diameter [diameter]	Jacket Color	Operating Temperature	Length	Length	Wire Gauge	Jacket (Insulation) Material	Ratings	Conductor Plating	Length [x]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness
OK INDUSTRIES R30BLK-1000	0.019 in	0.5 mm	Copper Bare	0.25 mm	0.01 in	Black	105 C	1000 ft	304.8 m	30 AWG	Polyvinylidene Fluoride (PVDF)	UL Style 1423 VW-1	Silver
OK INDUSTRIES R30B-1000	0.019 in	0.5 mm	Copper Bare	0.25 mm	0.01 in	Blue	105 C	1000 ft	304.8 m	30 AWG	Polyvinylidene Fluoride (PVDF)	UL Style 1423 VW-1	Silver
OK INDUSTRIES R30BLK-0100	0.019 in	0.5 mm	Copper Bare	0.25 mm	0.01 in	Black	105 C		30.5 m	30 AWG	Polyvinylidene Fluoride (PVDF)	UL Style 1423 VW-1	Silver	100 ft	0.004 in	0.09 mm
OK INDUSTRIES R30B-0100	0.019 in	0.5 mm	Copper Bare	0.25 mm	0.01 in	Blue	105 C		30.5 m	30 AWG	Polyvinylidene Fluoride (PVDF)	UL Style 1423 VW-1	Silver	100 ft	0.004 in	0.09 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Wire Wrap 30 AWG Black Polyvinylidene Fluoride (PVDF) 1000' (304.80m)
