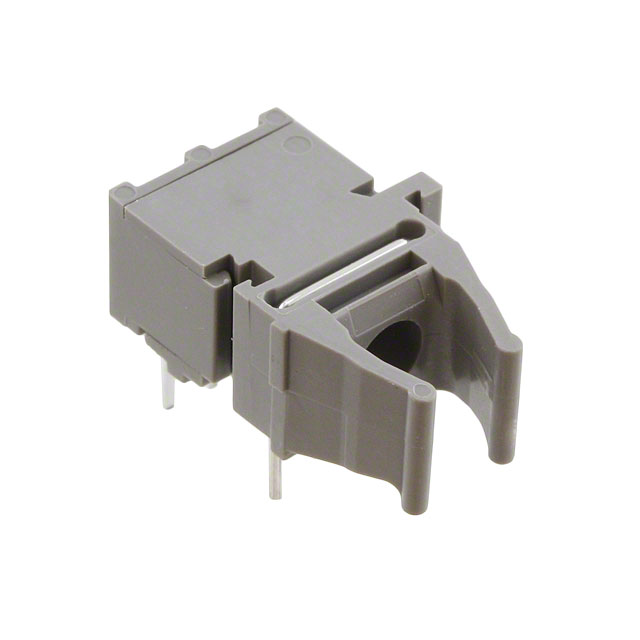

AFBR-1624Z
ActiveFIBER OPTIC TRANSMITTER, VERSATILE LINK, 650 NM, 50 MBAUD, 50 M, 21 MA, 3.3 V, -500 MV
Deep-Dive with AI
Search across all available documentation for this part.
AFBR-1624Z
ActiveFIBER OPTIC TRANSMITTER, VERSATILE LINK, 650 NM, 50 MBAUD, 50 M, 21 MA, 3.3 V, -500 MV
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AFBR-1624Z |
|---|---|
| Current - Supply | 21 mA |
| Data Rate | 50 Mbps |
| Voltage - Supply [Max] | 3.465 V, 5.25 V |
| Voltage - Supply [Min] | 3.135 V, 4.75 V |
| Wavelength | 650 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
AFBR-1624 Series
The AFBR-1624Z is a Fibre Optic Transmitter, utilizes a 650nm LED source with integrated optics and driver IC for efficient coupling into 1mm Polymer Optical Fibre (POF). The transmitter input is compatible with TTL logic families. The transmitter operates any type of signal from DC up to 50Mbaud at distances up to 50m with 1mm POF. The transmitter is a 4-pin device, packed in Versatile Link housing. Versatile Link components can be interlocked (N-plexed together) to minimize space and to provide dual connections with the duplex connectors. Various simplex and duplex connectors, as well as POF cables are available for Versatile Link components.
