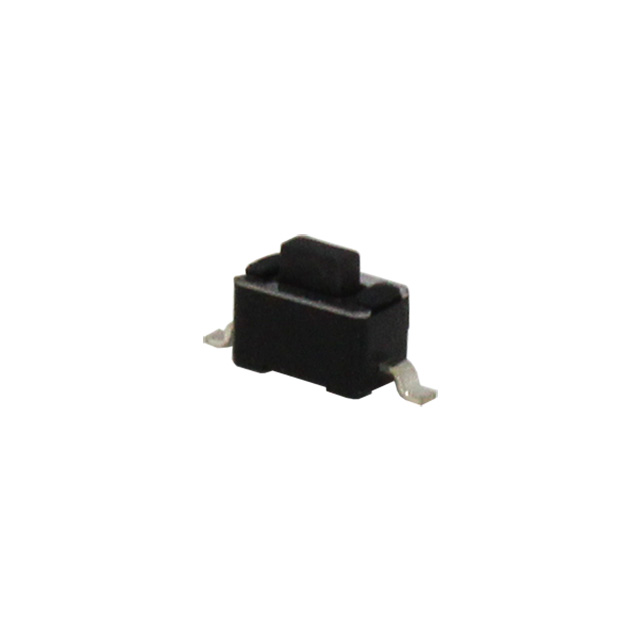

CS11015.0F260

Active

CIT Relay and Switch

SWITCH TACTILE SPST-NO 0.05A 50V

Search across all available documentation for this part.

Active

CIT Relay and Switch

SWITCH TACTILE SPST-NO 0.05A 50V

Technical Specifications

Parameters and characteristics for this part

Specification	CS11015.0F260

Actuator Height off PCB, Vertical	5 mm
Actuator Material	Polyamide (PA6T), Nylon 6T
Actuator Orientation	Top Actuated
Actuator Type	Rectangular Button
Circuit	SPST-NO
Contact Rating @ Voltage	50 VDC, 0.05 A
Illumination	Non-Illuminated
Mounting Type	Surface Mount
Operating Force	260 gf
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Outline [x]	6.05 mm
Outline [y]	3.5 mm
Switch Function	Off-Mom
Switch Travel	0.25 mm
Termination Style	Gull Wing

Part	Operating Force	Mounting Type	Illumination	Actuator Orientation	Actuator Material	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Outline [x]	Outline [y]	Switch Travel	Contact Rating @ Voltage	Actuator Height off PCB, Vertical	Termination Style	Switch Function
CIT Relay and Switch CS11015.0F260	260 gf	Surface Mount	Non-Illuminated	Top Actuated	Polyamide (PA6T) Nylon 6T	Rectangular Button	85 °C	-40 °C	SPST-NO	6.05 mm	3.5 mm	0.25 mm	0.05 A 50 VDC	5 mm	Gull Wing	Off-Mom
CIT Relay and Switch CS11015.0F160		Surface Mount	Non-Illuminated	Top Actuated	Nylon 4/6 Polyamide (PA46)	Rectangular Button	85 °C	-40 °C	SPST-NO	6.05 mm	3.5 mm	0.25 mm	0.05 A 50 VDC	5 mm	Gull Wing	Off-Mom

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tactile Switch SPST-NO Top Actuated Surface Mount
