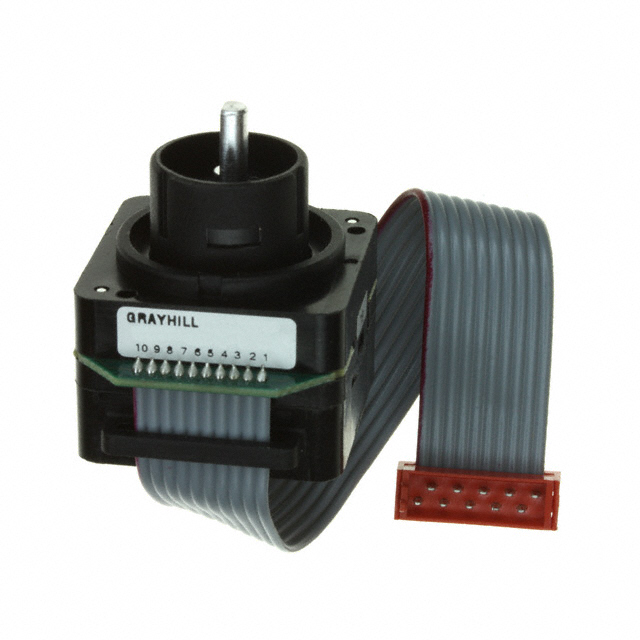

60C22-M7-4-060S

Active

Grayhill Inc.

SWITCH JOYSTICK FLATTED 10MA 5V

Search across all available documentation for this part.

Active

Grayhill Inc.

SWITCH JOYSTICK FLATTED 10MA 5V

Technical Specifications

Parameters and characteristics for this part

Specification	60C22-M7-4-060S

Current Rating (Amps)	10 mA
Mechanical Life	500000 Cycles
Operating Force	485 gf
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output	Digital (Schmitt Trigger)
Panel Cutout Dimensions [diameter]	22.58 mm
Switch Function	360° Rotational, 4-Way Directional, Center Select
Termination Style	Cable with Connector
Type	Joystick, 3 - Axis
Voltage - Supply	5 V
Voltage Rating - DC	5 V

Joysticks 60C22-M7-4-060C

Part	Voltage Rating - DC	Mechanical Life	Termination Style	Current Rating (Amps)	Voltage - Supply	Operating Temperature [Max]	Operating Temperature [Min]	Panel Cutout Dimensions [diameter]	Switch Function	Output	Operating Force	Type
Grayhill Inc. 60C22-M7-4-060C	5 V	500000 Cycles	Cable with Connector	10 mA	5 V	85 °C	-40 °C	22.58 mm	360° Rotational 4-Way Directional Center Select	Digital (Schmitt Trigger)	485 gf	Joystick 3 - Axis
Grayhill Inc. 60C22-M7-4-060S	5 V	500000 Cycles	Cable with Connector	10 mA	5 V	85 °C	-40 °C	22.58 mm	360° Rotational 4-Way Directional Center Select	Digital (Schmitt Trigger)	485 gf	Joystick 3 - Axis

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 41.34

General part information

Joysticks 60C22-M7-4-060C

Technical documentation and resources
