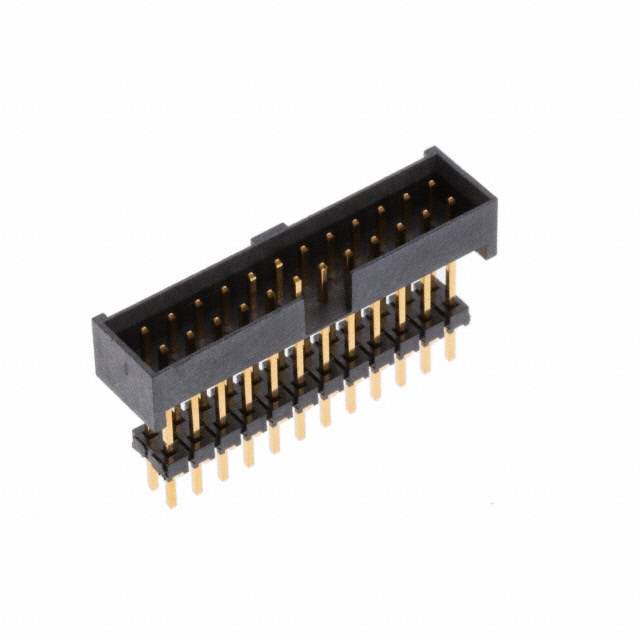

ZLTMM-112-63-G-D-420

Active

Samtec Inc.

CONN BRD STACK 2MM 24POS

Search across all available documentation for this part.

Active

Samtec Inc.

CONN BRD STACK 2MM 24POS

Technical Specifications

Parameters and characteristics for this part

Specification	ZLTMM-112-63-G-D-420

Connector Type	Elevated, Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	0.51 µm
Contact Finish Thickness - Mating	20 µin
Contact Finish Thickness - Post	3 µin
Contact Finish Thickness - Post	0.076 µm
Contact Length - Mating	3.05 mm
Contact Length - Mating	0.12 in
Contact Length - Post [x]	3.56 mm
Contact Length - Post [x]	0.14 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Features	Keying Slot
Insulation Color	Black
Insulation Height [custom]	0.42 in
Insulation Height [custom]	10.67 mm
Insulation Material	Polyamide (PA), Nylon
Mounting Type	Through Hole
Number of Positions	24
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Overall Contact Length	0.555 in
Overall Contact Length	14.1 mm
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Shrouded - 4 Wall
Termination	Solder

Part	Fastening Type	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Insulation Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Rows	Insulation Height [custom]	Insulation Height [custom]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Overall Contact Length	Overall Contact Length	Contact Type	Pitch - Mating [x]	Pitch - Mating [x]	Contact Length - Mating	Contact Length - Mating	Connector Type	Row Spacing - Mating	Row Spacing - Mating	Termination	Mounting Type	Contact Material	Contact Shape	Features	Insulation Material	Contact Length - Post [x]	Contact Length - Post [x]	Number of Positions	Contact Finish - Post	Shrouding
Samtec Inc. ZLTMM-112-63-G-D-420	Push-Pull	Gold	-55 °C	125 °C	All	Black	0.51 µm	20 µin	2	0.42 in	10.67 mm	3 µin	0.076 µm	0.555 in	14.1 mm	Male Pin	0.079 in	2 mm	3.05 mm	0.12 in	Elevated Header	0.079 in	2 mm	Solder	Through Hole	Phosphor Bronze	Square	Keying Slot	Nylon Polyamide (PA)	3.56 mm	0.14 in	24	Gold	Shrouded - 4 Wall

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole 24 position 0.079" (2.00mm)
