SA52-11SURKWA

Active

Kingbright

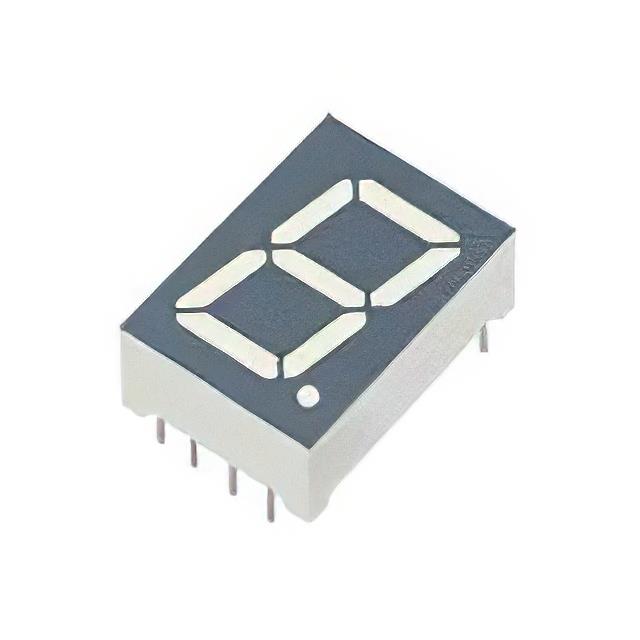

7 SEGMENT LED DISPLAY, MECHANICALLY RUGGED, RED, 20 MA, 1.95 V, 110 MCD, 1, 13.2 MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

SA52-11SURKWA

Active

Kingbright

7 SEGMENT LED DISPLAY, MECHANICALLY RUGGED, RED, 20 MA, 1.95 V, 110 MCD, 1, 13.2 MM

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SA52-11SURKWA

Color	Red
Common Pin	Common Anode
Current - Test	10 mA
Digit/Alpha Size	13.2 mm
Digit/Alpha Size	0.52 in
Display Type	7-Segment
Millicandela Rating	110 mcd
Number of Characters [custom]	1
Package / Case	0.6 in
Package / Case	15.24 mm
Package / Case	10-DIP
Power Dissipation (Max) [Max]	75 mw
Size / Dimension [x]	17.5 mm
Size / Dimension [x]	0.689 in
Size / Dimension [y]	0.488 "
Size / Dimension [y]	12.4 mm
Size / Dimension [z]	0.285 "
Size / Dimension [z]	7.25 mm
Voltage - Forward (Vf) (Typ)	1.85 V
Wavelength - Peak	645 nm

SA52-11 Series

Part	Wavelength - Peak	Common Pin	Color	Digit/Alpha Size	Digit/Alpha Size	Current - Test	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Number of Characters [custom]	Power Dissipation (Max) [Max]	Voltage - Forward (Vf) (Typ)	Package / Case	Package / Case	Package / Case	Millicandela Rating	Display Type	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]
Kingbright SA52-11SURKWA	645 nm	Common Anode	Red	13.2 mm	0.52 in	10 mA	0.285 "	17.5 mm	0.689 in	0.488 "	12.4 mm	7.25 mm	1	75 mw	1.85 V	0.6 in	15.24 mm	10-DIP	110 mcd	7-Segment
Kingbright SA52-11SRWA	660 nm	Common Anode	Red	13.21 mm	0.52 in	20 mA	7 mm		17.5 mm	12.4 mm			1	75 mw	1.85 V	0.6 in	15.24 mm	10-DIP	34 mcd	7-Segment	0.276 in	0.488 in	0.689 in
Kingbright SA52-11GWA	565 nm	Common Anode	Green	13.21 mm	0.52 in	20 mA	7 mm		17.5 mm	12.4 mm			1	62.5 mW	2.2 V	0.6 in	15.24 mm	10-DIP	10.5 mcd	7-Segment	0.276 in	0.488 in	0.689 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.34
		40	$ 1.56
		120	$ 1.20
		520	$ 1.09
		1000	$ 0.93
		2000	$ 0.88
		5000	$ 0.86
		10000	$ 0.85
Newark	Each	1	$ 2.69
		10	$ 2.22
		120	$ 1.75
		520	$ 1.59
		1000	$ 1.37
		2520	$ 1.33
		5000	$ 1.27

Description

General part information

SA52-11 Series

Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Anode 1.85V 10mA 0.689" H x 0.488" W x 0.285" D (17.50mm x 12.40mm x 7.25mm) 10-DIP (0.600", 15.24mm)
