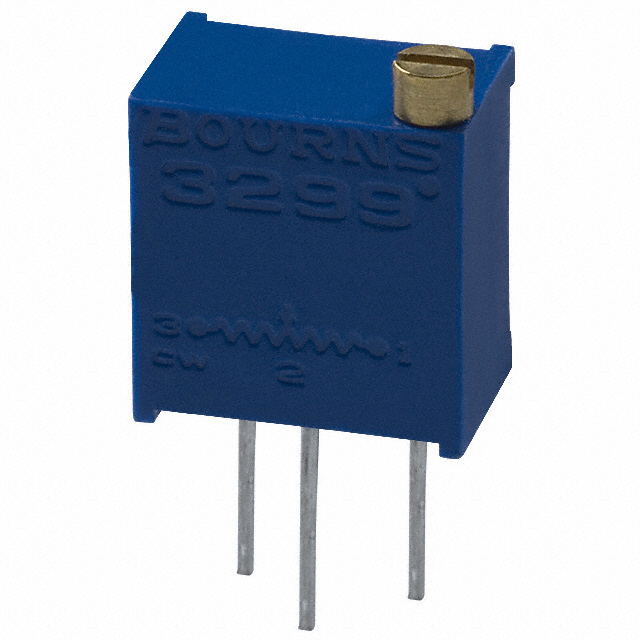

3299Y-1-200LF

Active

Bourns Inc.

RES,CERMET,20OHMS,300WVDC,10+/-% TOL,-100,100PPM-TC,3938-CASE ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Bourns Inc.

RES,CERMET,20OHMS,300WVDC,10+/-% TOL,-100,100PPM-TC,3938-CASE ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Part	Resistance	Resistive Material	Number of Turns	Termination Style	Power (Watts)	Power (Watts)	Temperature Coefficient	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Mounting Type	Tolerance	Adjustment Type
Bourns Inc. 3299Y-1-204LF	200000 Ohms	Cermet	25	PC Pins	0.5 W	0.5 W	100 ppm/°C	0.375 in	9.53 mm	6.1 mm	0.24 in	Through Hole	10 %	Top Adjustment
Bourns Inc. 3299Y-1-253	25 kOhms	Cermet	25	PC Pins	0.5 W	0.5 W	100 ppm/°C	0.375 in	9.53 mm	6.1 mm	0.24 in	Through Hole	10 %	Top Adjustment
Bourns Inc. 3299Y-1-200LF	20 Ohms	Cermet	25	PC Pins	0.5 W	0.5 W	100 ppm/°C	0.375 in	9.53 mm	6.1 mm	0.24 in	Through Hole	10 %	Top Adjustment
Bourns Inc. 3299Y-1-103	10000 Ohms	Cermet	25	PC Pins	0.5 W	0.5 W	100 ppm/°C	0.375 in	9.53 mm	6.1 mm	0.24 in	Through Hole	10 %	Top Adjustment
Bourns Inc. 3299Y-1-501LF	500 Ohms	Cermet	25	PC Pins	0.5 W	0.5 W	100 ppm/°C	0.375 in	9.53 mm	6.1 mm	0.24 in	Through Hole	10 %	Top Adjustment
Bourns Inc. 3299Y-1-505	5 MOhms	Cermet	25	PC Pins	0.5 W	0.5 W	100 ppm/°C	0.375 in	9.53 mm	6.1 mm	0.24 in	Through Hole	10 %	Top Adjustment
Bourns Inc. 3299Y-1-253LF	25 kOhms	Cermet	25	PC Pins	0.5 W	0.5 W	100 ppm/°C	0.375 in	9.53 mm	6.1 mm	0.24 in	Through Hole	10 %	Top Adjustment
Bourns Inc. 3299Y-1-202LF	2 kOhms	Cermet	25	PC Pins	0.5 W	0.5 W	100 ppm/°C	0.375 in	9.53 mm	6.1 mm	0.24 in	Through Hole	10 %	Top Adjustment
Bourns Inc. 3299Y-1-201	200 Ohms	Cermet	25	PC Pins	0.5 W	0.5 W	100 ppm/°C	0.375 in	9.53 mm	6.1 mm	0.24 in	Through Hole	10 %	Top Adjustment
Bourns Inc. 3299Y-1-101	100 Ohms	Cermet	25	PC Pins	0.5 W	0.5 W	100 ppm/°C	0.375 in	9.53 mm	6.1 mm	0.24 in	Through Hole	10 %	Top Adjustment

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

20 Ohms 0.5W, 1/2W PC Pins Through Hole Trimmer Potentiometer Cermet 25.0 Turn Top Adjustment
