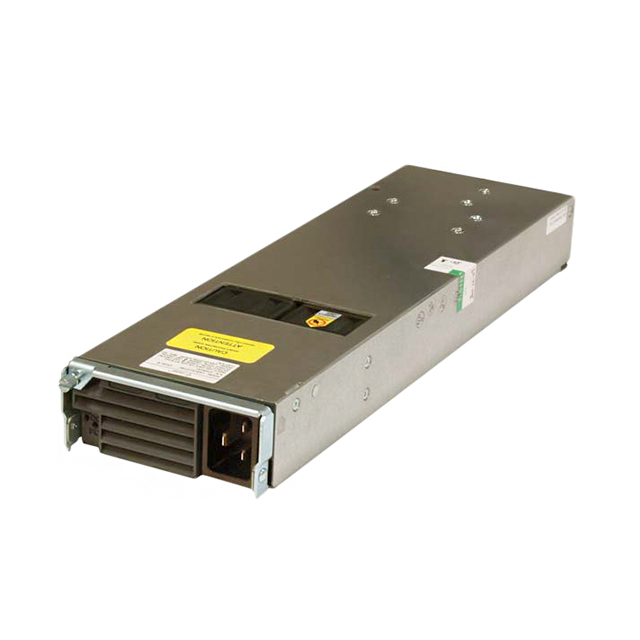

CAR3012TEBX5Z01A

Active

OmniOn Power™

AC/DC CONVERTER 12V 3000W

Search across all available documentation for this part.

Active

OmniOn Power™

AC/DC CONVERTER 12V 3000W

Technical Specifications

Parameters and characteristics for this part

Specification	CAR3012TEBX5Z01A

Applications	ITE (Commercial)
Approval Agency	CE
Current - Output 1	250 A
Efficiency	93 %
Features	PMBus™, I2C Interface, Remote Sense, PFC, Load Sharing, Universal Input, Remote On/Off, Standby Output, Hot Swappable
Minimum Load Required	False
Mounting Type	Rack Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	3000 W
Size / Dimension [x]	15.82 "
Size / Dimension [x]	401.8 mm
Size / Dimension [y]	4 "
Size / Dimension [y]	101.6 mm
Size / Dimension [z]	40.9 mm
Size / Dimension [z]	1.61 "
Type	Front End
Voltage - Isolation	3000 V
Voltage - Output 1	12 V

Part	Minimum Load Required	Approval Agency	Features	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Applications	Current - Output 1	Operating Temperature [Min]	Operating Temperature [Max]	Type	Number of Outputs	Power (Watts)	Mounting Type	Voltage - Isolation	Voltage - Output 1	Efficiency
OmniOn Power™ CAR3012TEBX5Z01A		CE	Hot Swappable I2C Interface Load Sharing PFC PMBus™ Remote On/Off Remote Sense Standby Output Universal Input	40.9 mm	1.61 "	15.82 "	4 "	101.6 mm	401.8 mm	ITE (Commercial)	250 A	-10 °C	70 °C	Front End	1	3000 W	Rack Mount	3000 V	12 V	93 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	5	$ 1108.21

General part information

Front End AC DC Converters 1 Output 12V 85 ~ 264 VAC Input
