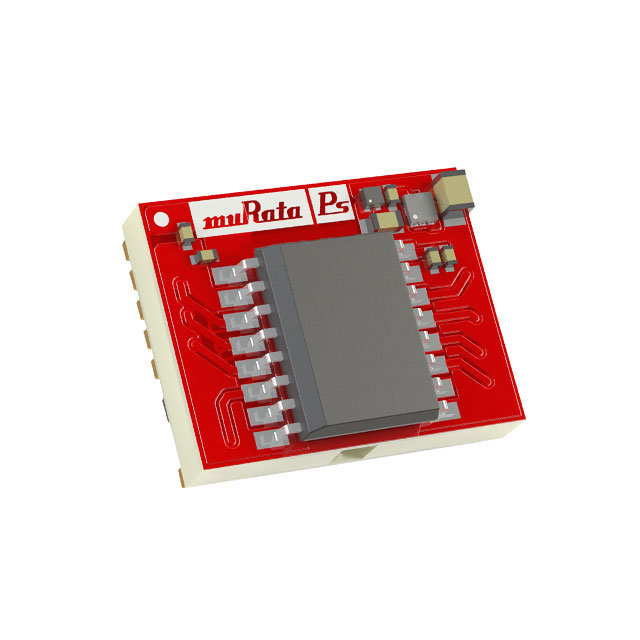

NM485D6S5MC-R7
ObsoleteMurata Power Solutions Inc.
DGTL ISOL 3000VAC 2CH RS485
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | NM485D6S5MC-R7 |
|---|---|
| Channel Type | Bidirectional |
| Data Rate | 500 kbps |
| Inputs - Side 1/Side 2 | 1/1 |
| Isolated Power | True |
| Number of Channels [custom] | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Module |
| Technology | Magnetic Coupling |
| Voltage - Isolation | 3000 VAC |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 4.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
NM485 Series
RS485 Digital Isolator 3000VAC 2 Channel 500kbps CMTI Module
