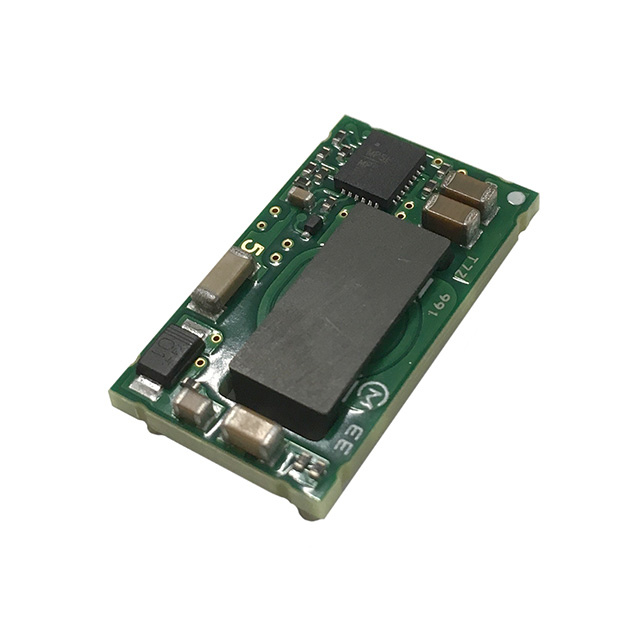

MYBSP01201ABF
ActiveMurata Power Solutions Inc.
DC-DC CONVERTER, 12V, 1A ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
MYBSP01201ABF
ActiveMurata Power Solutions Inc.
DC-DC CONVERTER, 12V, 1A ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MYBSP01201ABF |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 1 A |
| Efficiency | 84 % |
| Features | UVLO, OTP, OVP, SCP |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Module |
| Power (Watts) | 12 W |
| Size / Dimension [x] | 26 mm |
| Size / Dimension [x] | 1.02 in |
| Size / Dimension [y] | 14.8 mm |
| Size / Dimension [y] | 0.58 " |
| Size / Dimension [z] | 6.2 mm |
| Size / Dimension [z] | 0.24 " |
| Type | Isolated PoE Module |
| Voltage - Input (Max) [Max] | 57 V |
| Voltage - Input (Min) [Min] | 37 V |
| Voltage - Isolation | 2250 VDC |
| Voltage - Output 1 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
MYBSP012 Series
DC-DC CONVERTER, 12V, 1A ROHS COMPLIANT: YES
Documents
Technical documentation and resources
