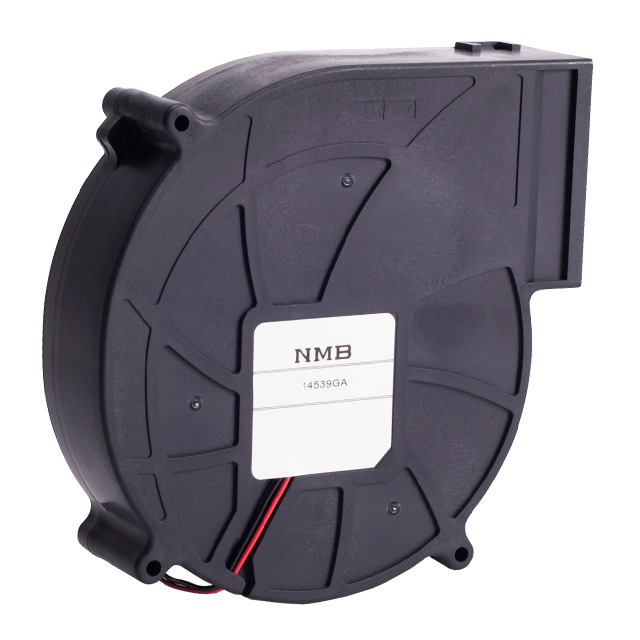

14539GA-12N-AA-00
ActiveNMB TECHNOLOGIES
FAN BLOWER, 145MM, 15W, 12 ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
14539GA-12N-AA-00
ActiveNMB TECHNOLOGIES
FAN BLOWER, 145MM, 15W, 12 ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 14539GA-12N-AA-00 |
|---|---|
| Air Flow | 51.2 CFM |
| Air Flow | 1.43 m³/min |
| Bearing Type | Ball |
| Current Rating (Amps) | 1.25 A |
| Fan Type | Blower |
| Features | Auto Restart |
| Lifetime @ Temp. | 100000 Hrs |
| Material - Blade | Plastic |
| Material - Frame | Plastic |
| Noise | 54.5 dB |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -10 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 15 W |
| RPM | 2450 RPM |
| Size / Dimension | Square/Rounded |
| Size / Dimension [x] | 145 mm |
| Size / Dimension [z] | 145 mm |
| Static Pressure | 385 Pa |
| Static Pressure | 1.55 in H2O |
| Termination | 2 Wire Leads |
| Voltage - Rated | 12 VDC |
| Voltage Range [Max] | 13.2 VDC |
| Voltage Range [Min] | 8 VDC |
| Width [x] | 39 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
14539GA Series
Fan Blower 12VDC Square/Rounded - 145mm L x 145mm H Ball 51.2 CFM (1.43m³/min) 2 Wire Leads
