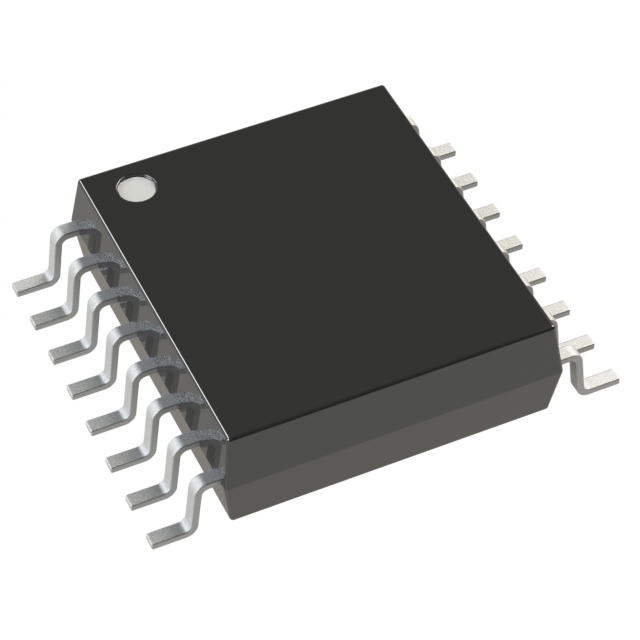

PI90LV047AL

Obsolete

Diodes Inc

IC DRIVER 4/0 16TSSOP

Search across all available documentation for this part.

Obsolete

Diodes Inc

IC DRIVER 4/0 16TSSOP

Technical Specifications

Parameters and characteristics for this part

Specification	PI90LV047AL

Data Rate	400 Mbps
Mounting Type	Surface Mount
Number of Drivers/Receivers [custom]	4
Number of Drivers/Receivers [custom]	0
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	16-TSSOP
Package / Case [x]	0.173 in
Package / Case [y]	4.4 mm
Protocol	LVDS
Supplier Device Package	16-TSSOP
Type	Driver
Voltage - Supply [Max]	3.6 V
Voltage - Supply [Min]	3 V

Part	Type	Supplier Device Package	Voltage - Supply [Max]	Voltage - Supply [Min]	Mounting Type	Data Rate	Operating Temperature [Max]	Operating Temperature [Min]	Protocol	Number of Drivers/Receivers [custom]	Number of Drivers/Receivers [custom]	Package / Case [x]	Package / Case	Package / Case [y]
Diodes Inc PI90LV047AL	Driver	16-TSSOP	3.6 V	3 V	Surface Mount	400 Mbps	85 °C	-40 °C	LVDS	4	0	0.173 in	16-TSSOP	4.4 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

4/0 Driver LVDS 16-TSSOP
