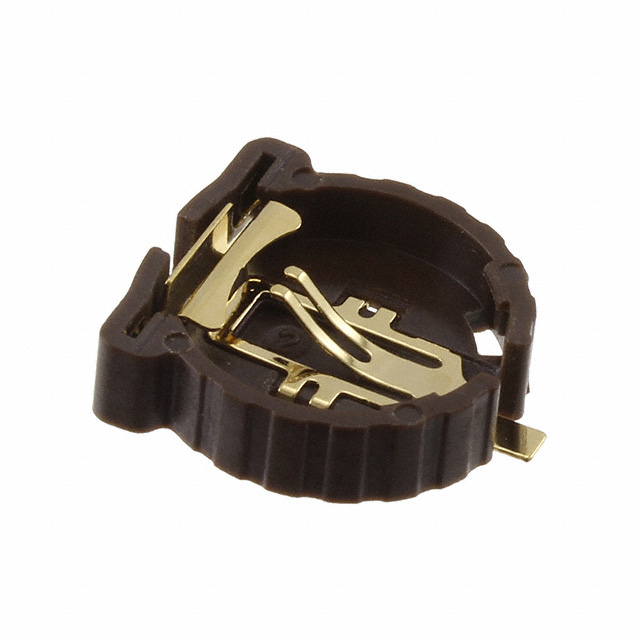

BC501SM-TR
ActiveMPD (Memory Protection Devices)
BATTERY HOLDER COIN 12MM SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BC501SM-TR
ActiveMPD (Memory Protection Devices)
BATTERY HOLDER COIN 12MM SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BC501SM-TR |
|---|---|
| Battery Cell Size | 12 mm |
| Battery Cell Size | Coin |
| Battery Series | 1220 |
| Battery Type, Function | Holder, Coin Cell |
| Height Above Board [z] | 4 mm |
| Height Above Board [z] | 0.157 " |
| Mounting Type | PCB, Surface Mount |
| Number of Cells | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Style | Holder (Open) |
| Termination Style | SMD (SMT) Tab |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.40 | |
| 10 | $ 1.16 | |||
| 50 | $ 1.02 | |||
| 100 | $ 0.96 | |||
| 250 | $ 0.89 | |||
| Digi-Reel® | 1 | $ 1.40 | ||
| 10 | $ 1.16 | |||
| 50 | $ 1.02 | |||
| 100 | $ 0.96 | |||
| 250 | $ 0.89 | |||
| Tape & Reel (TR) | 500 | $ 0.84 | ||
| 1000 | $ 0.80 | |||
| 1500 | $ 0.77 | |||
| 2500 | $ 0.74 | |||
| 3500 | $ 0.72 | |||
| 5000 | $ 0.70 | |||
| 12500 | $ 0.65 | |||
Description
General part information
BC501 Series
Battery Holder (Open) Coin, 12.0mm 1 Cell SMD (SMT) Tab
