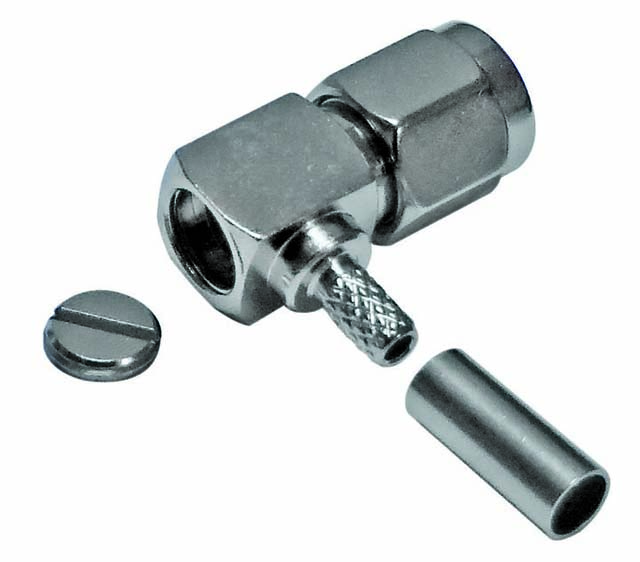

SC-100-SM-RA

Active

Amphenol Times Microwave Systems

SMA-MALE (PLUG) RIGHT ANGLE CRIM

Deep-Dive with AI

Search across all available documentation for this part.

SC-100-SM-RA

Active

Amphenol Times Microwave Systems

SMA-MALE (PLUG) RIGHT ANGLE CRIM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SC-100-SM-RA

Body Finish	Nickel
Body Material	Brass
Cable Group	LMR-100A
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	6000 MHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Shield Termination	Crimp

SC-100 Series

Part	Housing Color	Center Contact Material	Connector Style	Shield Termination	Frequency - Max [Max]	Mounting Type	Cable Group	Connector Type	Number of Ports	Body Material	Impedance	Center Contact Plating	Mating Cycles	Dielectric Material	Body Finish	Contact Termination	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Mounting Feature	Fastening Type
Amphenol Times Microwave Systems SC-100-SM	Silver	Brass	SMA	Crimp	6000 MHz	Free Hanging (In-Line)	LMR-100	Male Pin Plug	1	Brass	50 Ohms	Gold	500	Polytetrafluoroethylene (PTFE)	Nickel	Solder	125 °C	-40 °C
Amphenol Times Microwave Systems SC-100-SF	Silver	Beryllium Copper	SMA	Crimp	6000 MHz	Free Hanging (In-Line)	LMR-100A	Female Socket Jack	1	Brass	50 Ohms	Gold	500	Polytetrafluoroethylene (PTFE)	Nickel	Solder	125 °C	-55 °C	500 V
Amphenol Times Microwave Systems SC-100-SM-RA	Silver	Brass	SMA	Crimp	6000 MHz	Free Hanging (In-Line) Right Angle	LMR-100A	Male Pin Plug	1	Brass	50 Ohms	Gold	500	Polytetrafluoroethylene (PTFE)	Nickel	Solder	125 °C	-40 °C
Amphenol Times Microwave Systems SC-100-NF-BH	Silver	Beryllium Copper Brass	N Type	Crimp	2.5 GHz		LMR-100	Female Socket Jack	1	Brass	50 Ohms	Gold		Polytetrafluoroethylene (PTFE)	Nickel	Push On	85 °C	-40 °C	1000 VDC	Bulkhead - Front Side Nut
Amphenol Times Microwave Systems SC-100-TM	Silver	Beryllium Copper Brass	TNC	Crimp	6000 MHz	Free Hanging (In-Line)	LMR-100A	Male Pin Plug	1	Brass	50 Ohms	Gold	500	Polytetrafluoroethylene (PTFE)	Nickel	Solder	125 °C	-40 °C
Amphenol Times Microwave Systems SC-100-MCXF	Gold	Beryllium Copper	MCX	Crimp	6000 MHz	Free Hanging (In-Line)	LMR-100	Female Socket Jack	1	Brass	50 Ohms	Gold	500	Polytetrafluoroethylene (PTFE)	Gold	Solder	125 °C	-55 °C	500 V		Snap-On
Amphenol Times Microwave Systems SC-100-NM

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	31	$ 10.70
		40	$ 9.13

Description

General part information

SC-100 Series

SMA Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Solder

Documents

Technical documentation and resources

No documents available
