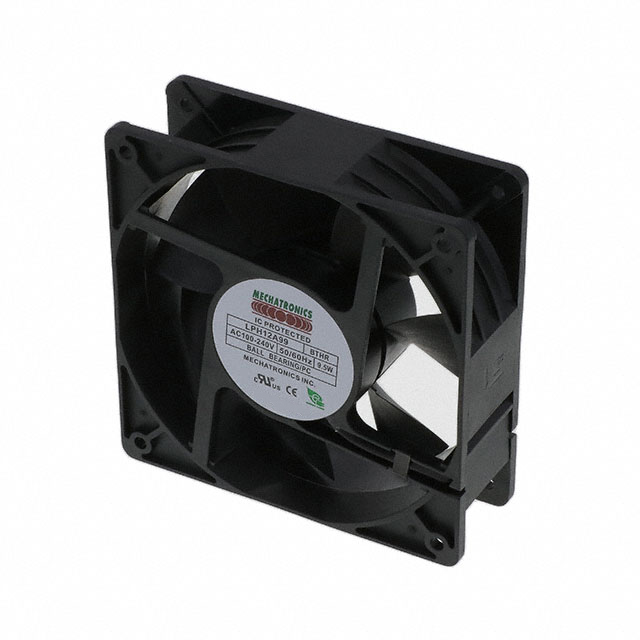

LPH12A99-BTHR-PC

Active

Mechatronics Bearing Group

EC FAN AXIAL 120 X 120 X 38MM W/

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

LPH12A99-BTHR-PC

Active

Mechatronics Bearing Group

EC FAN AXIAL 120 X 120 X 38MM W/

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LPH12A99-BTHR-PC

Air Flow	123.9 CFM
Air Flow	3.47 m³/min
Bearing Type	Ball
Current Rating (Amps)	0.18 A
Fan Type	Tubeaxial
Features	Electronic Commutation (EC), Parylene Coating, Auto Restart
Material - Blade	Plastic
Material - Frame	Plastic
Noise	49 dB
RPM	3500 RPM
Size / Dimension [x]	120 mm
Size / Dimension [y]	120 mm
Static Pressure	90.5 Pa
Static Pressure	0.363 in H2O
Termination	2 Terminals
Voltage - Rated [Max]	240 VAC
Voltage - Rated [Min]	100 VAC
Voltage Range [Max]	264 VAC
Voltage Range [Min]	90 VAC
Weight	286.2 g
Weight	0.631 lb
Width [y]	38.5 mm

LPH12 Series

Part	Voltage - Rated [Min]	Voltage - Rated [Max]	Power (Watts)	Bearing Type	Voltage Range [Max]	Voltage Range [Min]	Noise	Width [y]	Size / Dimension [y]	Size / Dimension [x]	Material - Frame	Static Pressure	Static Pressure	Air Flow	Air Flow	Features	Current Rating (Amps)	Termination	Ingress Protection	Material - Blade	RPM	Fan Type	Weight	Weight	Lifetime @ Temp.	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Approval Agency
Mechatronics Bearing Group LPH12A99-BWER5	100 VAC	240 VAC	15 W	Ball	240 VAC	100 VAC	47 dB	38 mm	120 mm	120 mm	Plastic	0.47 in H2O	117.1 Pa	3.86 m³/min	138 CFM	Auto Restart Electronic Commutation (EC)	0.18 A	2 Wire Leads	IP54 - Dust Protected Water Resistant	Plastic	3500 RPM	Tubeaxial
Mechatronics Bearing Group LPH12A99-BWHR-2EM	100 VAC	240 VAC		Ball	264 VAC	90 VAC	49 dB	38.5 mm	120 mm	120 mm	Plastic	0.363 in H2O	90.5 Pa	3.47 m³/min	123.9 CFM	Auto Restart Electronic Commutation (EC)	0.18 A	2 Wire Leads	IP68 - Dust Tight Waterproof	Plastic	3500 RPM	Tubeaxial	286.2 g	0.631 lb
Mechatronics Bearing Group LPH12A99-BWHR	100 VAC	240 VAC		Ball	264 VAC	90 VAC	49 dB	38.5 mm	120 mm	120 mm	Plastic	0.36 in H2O	89.6 Pa	3.47 m³/min	123.9 CFM	Auto Restart Electronic Commutation (EC)	0.18 A	2 Wire Leads		Plastic	3500 RPM	Tubeaxial			50000 Hrs	70 °C	70 °C	-40 °C	-40 °C	CE cUL TUV UL
Mechatronics Bearing Group LPH12A99-BWHR-B1+6	100 VAC	240 VAC		Ball	264 VAC	90 VAC	49 dB	38.5 mm	120 mm	120 mm	Plastic	0.363 in H2O	90.5 Pa	3.47 m³/min	123.9 CFM	Auto Restart Electronic Commutation (EC) PWM Control Speed Sensor (Tach)	0.18 A	4 Wire Leads		Plastic	3500 RPM	Tubeaxial	286.2 g	0.631 lb
Mechatronics Bearing Group LPH12A99-BTHR-PC	100 VAC	240 VAC		Ball	264 VAC	90 VAC	49 dB	38.5 mm	120 mm	120 mm	Plastic	0.363 in H2O	90.5 Pa	3.47 m³/min	123.9 CFM	Auto Restart Electronic Commutation (EC) Parylene Coating	0.18 A	2 Terminals		Plastic	3500 RPM	Tubeaxial	286.2 g	0.631 lb
Mechatronics Bearing Group LPH12A99-BWER5-PC-EX	100 VAC	240 VAC	15 W	Ball	265 VAC	85 VAC	47 dB	38 mm	120 mm	120 mm	Plastic	0.47 in H2O	117.1 Pa			Auto Restart Electronic Commutation (EC) Parylene Coating	0.18 A	2 Wire Leads	IP54 - Dust Protected Water Resistant	Plastic	3500 RPM	Tubeaxial								ATEX
Mechatronics Bearing Group LPH12A99-BWHR-B1	100 VAC	240 VAC		Ball	264 VAC	90 VAC	49 dB	38.5 mm	120 mm	120 mm	Plastic	0.363 in H2O	90.5 Pa	3.47 m³/min	123.9 CFM	Auto Restart Electronic Commutation (EC) Speed Sensor (Tach)	0.18 A	3 Wire Leads		Plastic	3500 RPM	Tubeaxial	286.2 g	0.631 lb
Mechatronics Bearing Group LPH12A99-BTMR	100 VAC	240 VAC	6.2 W	Ball	264 VAC	90 VAC	45 dB(A)	38.5 mm	120 mm	120 mm	Plastic	0.29 in H2O	72.2 Pa	3.08 mł/min	110 CFM	Auto Restart Electronic Commutation (EC)	120 mA	2 Terminals		Plastic	3000 RPM	Tubeaxial			50000 Hrs	70 °C	70 °C	-40 °C	-40 °C	CE cUL TUV UL
Mechatronics Bearing Group LPH12A99-BTER5	100 VAC	240 VAC	10.5 W	Ball			47 dB	38 mm	120 mm	120 mm	Plastic	0.47 in H2O	117.1 Pa	3.86 m³/min	138 CFM	Auto Restart Electronic Commutation (EC)	0.18 A	2 Terminals	IP54 - Dust Protected Water Resistant	Plastic	3500 RPM	Tubeaxial
Mechatronics Bearing Group LPH12A99-BTHR-2EM	100 VAC	240 VAC		Ball	264 VAC	90 VAC	49 dB	38.5 mm	120 mm	120 mm	Plastic	0.363 in H2O	90.5 Pa	3.47 m³/min	123.9 CFM	Auto Restart Electronic Commutation (EC)	0.18 A	2 Terminals	IP68 - Dust Tight Waterproof	Plastic	3500 RPM	Tubeaxial	286.2 g	0.631 lb

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 19.75

Description

General part information

LPH12 Series

Fan Tubeaxial 100 ~ 240VAC Square - 120mm L x 120mm H Ball 123.9 CFM (3.47m³/min) 2 Terminals
