XAM3894CYG

Unknown

Texas Instruments

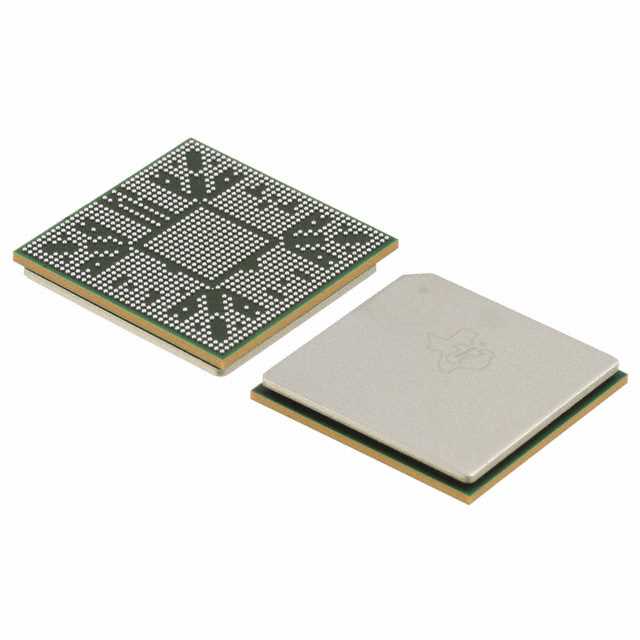

IC MPU SITARA 1.2GHZ 1031FCBGA

Search across all available documentation for this part.

Unknown

Texas Instruments

IC MPU SITARA 1.2GHZ 1031FCBGA

Technical Specifications

Parameters and characteristics for this part

Specification	XAM3894CYG

Additional Interfaces	McBSP, UART, SD/SDIO, SPI, McASP, I2C
Co-Processors/DSP	NEON™ SIMD, Multimedia
Core Processor	ARM® Cortex®-A8
Display & Interface Controllers	HDVPSS, HDMI
Ethernet	10 Mbps, 1000 Mbps, 100 Mbps
Ethernet	2
Graphics Acceleration	True
Mounting Type	Surface Mount
Number of Cores/Bus Width	32 Bit, 1 Core
Operating Temperature [Max]	95 °C
Operating Temperature [Min]	0 °C
Package / Case	1031-BFBGA, FCBGA
SATA	3 Gbps
Speed	1.2 GHz
Supplier Device Package	1031-FCBGA (25x25)
USB	USB 2.0 + PHY (2)
Voltage - I/O	3.3 V, 1.8 V

Part	Operating Temperature [Min]	Operating Temperature [Max]	Number of Cores/Bus Width	Mounting Type	Core Processor	Ethernet	Voltage - I/O	Supplier Device Package	USB	Package / Case	Co-Processors/DSP	Graphics Acceleration	Display & Interface Controllers	Additional Interfaces	SATA	Speed	Ethernet
Texas Instruments XAM3874BCYE	0 °C	90 °C	1 Core 32 Bit	Surface Mount	ARM® Cortex®-A8	10 Mbps 100 Mbps 1000 Mbps	1.8 V 3.3 V	684-FCBGA (23x23)	USB 2.0 (2)	684-BFBGA FCBGA	Multimedia NEON™ SIMD		HDMI HDVPSS	CAN I2C McASP McBSP MMC/SD/SDIO SPI UART	3 Gbps	720 MHz
Texas Instruments XAM3894CYG	0 °C	95 °C	1 Core 32 Bit	Surface Mount	ARM® Cortex®-A8	10 Mbps 100 Mbps 1000 Mbps	1.8 V 3.3 V	1031-FCBGA (25x25)	USB 2.0 + PHY (2)	1031-BFBGA FCBGA	Multimedia NEON™ SIMD		HDMI HDVPSS	I2C McASP McBSP SD/SDIO SPI UART	3 Gbps	1.2 GHz	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 69.65

General part information

ARM® Cortex®-A8 Microprocessor IC Sitara™ 1 Core, 32-Bit 1.2GHz 1031-FCBGA (25x25)

Technical documentation and resources

No documents available
