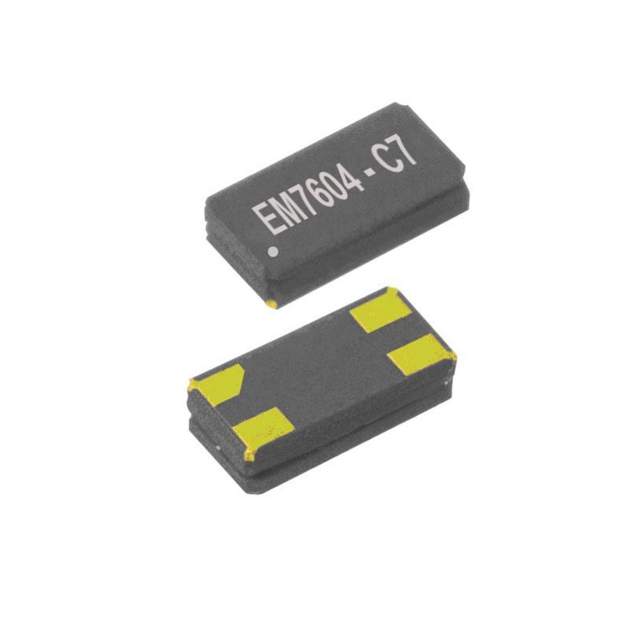

EM7604V20SCP4B+
ActiveEM Microelectronic
CRYSTAL 32.6780KHZ SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EM7604V20SCP4B+
ActiveEM Microelectronic
CRYSTAL 32.6780KHZ SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EM7604V20SCP4B+ |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Max) | 1 mA |
| Frequency | 32.768 kHz |
| Function | Enable/Disable |
| Height - Seated (Max) [Max] | 0.039 " |
| Height - Seated (Max) [Max] | 1 mm |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -10 °C |
| Output | CMOS |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [x] | 0.126 in |
| Size / Dimension [y] | 1.5 mm |
| Size / Dimension [y] | 0.059 " |
| Type | XO (Standard) |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 1.2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 5.29 | |
| 10 | $ 3.46 | |||
| 25 | $ 2.98 | |||
| 100 | $ 2.44 | |||
| 250 | $ 2.18 | |||
| 500 | $ 2.01 | |||
| Digi-Reel® | 1 | $ 5.29 | ||
| 10 | $ 3.46 | |||
| 25 | $ 2.98 | |||
| 100 | $ 2.44 | |||
| 250 | $ 2.18 | |||
| 500 | $ 2.01 | |||
| Tape & Reel (TR) | 1000 | $ 2.16 | ||
| 2000 | $ 2.11 | |||
| 3000 | $ 2.09 | |||
Description
General part information
EM7604 Series
32.768 kHz XO (Standard) CMOS Oscillator 1.2V ~ 5.5V Enable/Disable 4-SMD, No Lead
