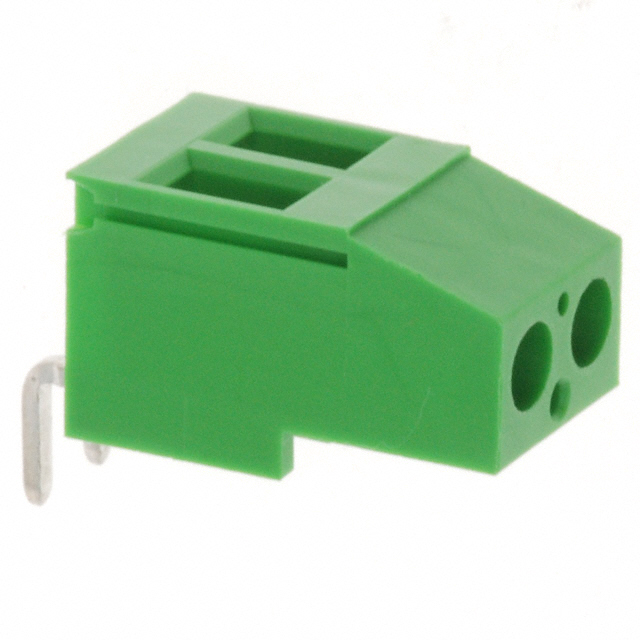

ED705/2

Active

On Shore Technology Inc.

TERM BLK 2POS TOP ENTRY 5MM PCB

Search across all available documentation for this part.

Active

On Shore Technology Inc.

TERM BLK 2POS TOP ENTRY 5MM PCB

Technical Specifications

Parameters and characteristics for this part

Specification	ED705/2

Clamp Material - Plating	Copper
Color	Green
Contact Material - Plating [custom]	Brass
Current	15 A
Features	Interlocking (Side)
Housing Material	Polyamide (PA), Nylon
Mating Orientation	Vertical with Board
Mounting Type	Through Hole
Number of Levels	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-30 ░C
Pitch [x]	5 mm
Pitch [x]	0.197 in
Positions Per Level	2
Screw Thread	M3
Torque - Screw	4.4 Lb-In
Torque - Screw	0.5 Nm
Voltage	300 V
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	14 AWG
Wire Termination	Screw - Rising Cage Clamp

Part	Clamp Material - Plating	Color	Pitch [x]	Pitch [x]	Screw Thread	Current	Wire Termination	Housing Material	Features	Voltage	Mating Orientation	Wire Gauge [Min]	Wire Gauge [Max]	Torque - Screw	Torque - Screw	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Levels	Positions Per Level	Contact Material - Plating [custom]
On Shore Technology Inc. ED705/2	Copper	Green	5 mm	0.197 in	M3	15 A	Screw - Rising Cage Clamp	Polyamide (PA) Nylon	Interlocking (Side)	300 V	Vertical with Board	14 AWG	22 AWG	4.4 Lb-In	0.5 Nm	Through Hole	-30 ░C	105 ░C	1	2	Brass
On Shore Technology Inc. ED705/3	Copper	Green	5 mm	0.197 in	M3	15 A	Screw - Rising Cage Clamp	Polyamide (PA) Nylon	Interlocking (Side)	300 V	Vertical with Board	14 AWG	22 AWG	4.4 Lb-In	0.5 Nm	Through Hole	-30 ░C	105 ░C	1	3	Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 1.09

General part information

2 Position Wire to Board Terminal Block Vertical with Board 0.197" (5.00mm) Through Hole
