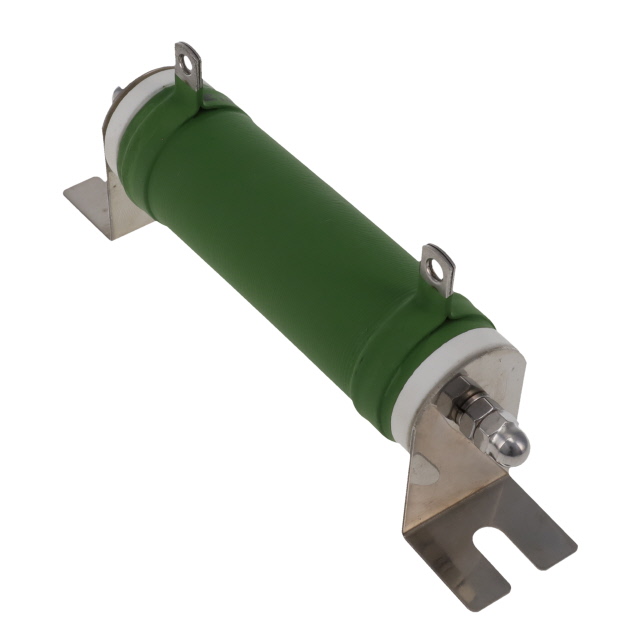

TE50B330RJ

Active

TE Connectivity Passive Product

RES CHAS MNT 330 OHM 5% 50W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TE50B330RJ

Active

TE Connectivity Passive Product

RES CHAS MNT 330 OHM 5% 50W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TE50B330RJ

Coating, Housing Type	Silicone Coated
Composition	Wirewound
Features	Flame Proof, Safety
Lead Style	Solder Lugs
Mounting Feature	Brackets
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Package / Case	Radial, Tubular
Power (Watts)	50 W
Resistance	330 Ohms
Size / Dimension [diameter]	28 mm
Size / Dimension [diameter]	1.102 in
Size / Dimension [x]	102 mm
Size / Dimension [x]	4.016 in
Temperature Coefficient	440 ppm/°C
Tolerance	5 %

TE50 Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Resistance	Lead Style	Mounting Feature	Features	Size / Dimension [diameter]	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [x]	Composition	Coating, Housing Type	Tolerance	Package / Case	Power (Watts)	Temperature Coefficient
TE Connectivity Passive Product TE50B2R2J	155 °C	-55 °C	2.2 Ohms	Solder Lugs	Brackets	Flame Proof Safety	28 mm	1.102 in	102 mm	4.016 in	Wirewound	Silicone Coated	5 %	Radial Tubular	50 W	440 ppm/°C
TE Connectivity Passive Product TE50B27RJ	155 °C	-55 °C	27 Ohms	Solder Lugs	Brackets	Flame Proof Safety	28 mm	1.102 in	102 mm	4.016 in	Wirewound	Silicone Coated	5 %	Radial Tubular	50 W	440 ppm/°C
TE Connectivity Passive Product TE50B1R2J	155 °C	-55 °C	1.2 Ohms	Solder Lugs	Brackets	Flame Proof Safety	28 mm	1.102 in	102 mm	4.016 in	Wirewound	Silicone Coated	5 %	Radial Tubular	50 W	440 ppm/°C
TE Connectivity Passive Product TE50B68RJ	155 °C	-55 °C	68 Ohms	Solder Lugs	Brackets	Flame Proof Safety	28 mm	1.102 in	102 mm	4.016 in	Wirewound	Silicone Coated	5 %	Radial Tubular	50 W	440 ppm/°C
TE Connectivity Passive Product TE50B82RJ	155 °C	-55 °C	82 Ohms	Solder Lugs	Brackets	Flame Proof Safety	28 mm	1.102 in	102 mm	4.016 in	Wirewound	Silicone Coated	5 %	Radial Tubular	50 W	440 ppm/°C
TE Connectivity Passive Product TE50B100RJ	155 °C	-55 °C	100 Ohms	Solder Lugs	Brackets	Flame Proof Safety	28 mm	1.102 in	102 mm	4.016 in	Wirewound	Silicone Coated	5 %	Radial Tubular	50 W	440 ppm/°C
TE Connectivity Passive Product TE50B180RJ	155 °C	-55 °C	180 Ohms	Solder Lugs	Brackets	Flame Proof Safety	28 mm	1.102 in	102 mm	4.016 in	Wirewound	Silicone Coated	5 %	Radial Tubular	50 W	440 ppm/°C
TE Connectivity Passive Product TE50B470RJ	155 °C	-55 °C	470 Ohms	Solder Lugs	Brackets	Flame Proof Safety	28 mm	1.102 in	102 mm	4.016 in	Wirewound	Silicone Coated	5 %	Radial Tubular	50 W	440 ppm/°C
TE Connectivity Passive Product TE50B330RJ	155 °C	-55 °C	330 Ohms	Solder Lugs	Brackets	Flame Proof Safety	28 mm	1.102 in	102 mm	4.016 in	Wirewound	Silicone Coated	5 %	Radial Tubular	50 W	440 ppm/°C
TE Connectivity Passive Product TE50B3R9J	155 °C	-55 °C	3.9 Ohms	Solder Lugs	Brackets	Flame Proof Safety	28 mm	1.102 in	102 mm	4.016 in	Wirewound	Silicone Coated	5 %	Radial Tubular	50 W	440 ppm/°C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 11.66
		10	$ 10.07
		30	$ 9.54
		50	$ 9.33
		100	$ 11.43
		250	$ 10.46
		500	$ 9.85
		1000	$ 9.33

Description

General part information

TE50 Series

330 Ohms ±5% 50W Wirewound Chassis Mount Resistor

Documents

Technical documentation and resources
