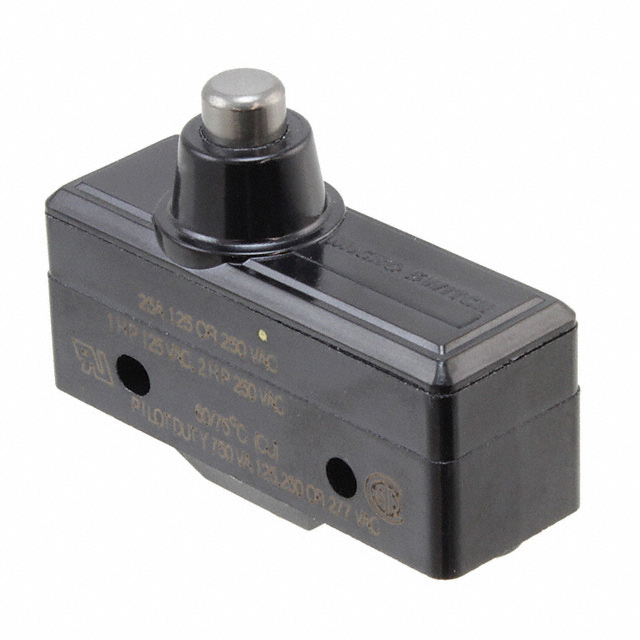

YE-2RB-A2
ActiveHoneywell Sensing and Productivity Solutions
SWITCH SNAP ACT SPST-NO 25A 125V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | YE-2RB-A2 |
|---|---|
| Actuator Type | Round (Pin Plunger) |
| Circuit | SPST-NO |
| Current Rating (Amps) | 25 A |
| Differential Travel | 0.007 in |
| Differential Travel | 0.18 mm |
| Mechanical Life | 20000000 Cycles |
| Mounting Type | Chassis Mount |
| Operating Force [Max] | 624 gf |
| Operating Force [Min] | 397 gf |
| Operating Position | 26.2 mm |
| Operating Position | 1.03 " |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -55 °C |
| Overtravel | 0.094 in |
| Overtravel | 2.4 mm |
| Pretravel | 0.05 in |
| Pretravel | 1.27 mm |
| Release Force | 283 gf |
| Switch Function | Off-Mom |
| Termination Style | Screw Terminal |
| Voltage Rating - AC | 125 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 18.33 | |
| 10 | $ 15.19 | |||
| 25 | $ 14.10 | |||
| 50 | $ 13.32 | |||
| 100 | $ 12.59 | |||
| 250 | $ 11.68 | |||
| 500 | $ 11.17 | |||
Description
General part information
YE-2RB Series
Switch SPST-NO Chassis Mount
