11136000302

Active

HARTING Technology Group

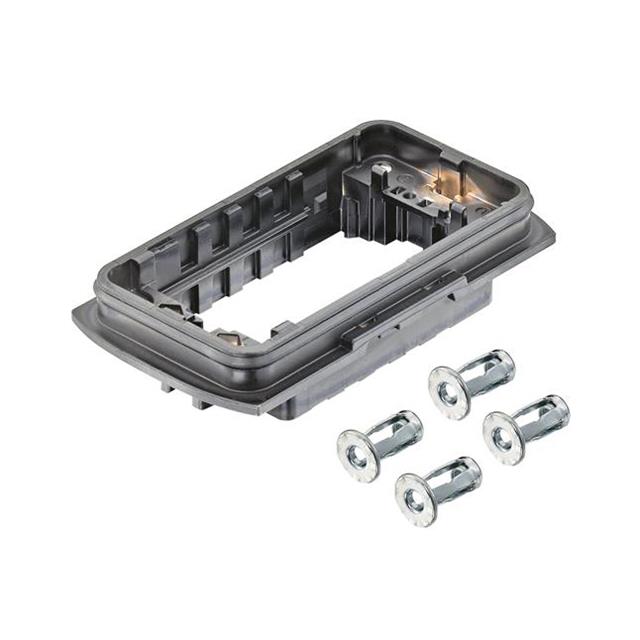

HAN-YELLOCK 60M BULKHEAD HOUSING (WITH MOLLY FASTENERS) - OUTDOOR VERSION

Search across all available documentation for this part.

Active

HARTING Technology Group

HAN-YELLOCK 60M BULKHEAD HOUSING (WITH MOLLY FASTENERS) - OUTDOOR VERSION

Technical Specifications

Parameters and characteristics for this part

Specification	11136000302

Connector Type	Base - Panel Mount
Housing Finish	Zinc Passivation
Housing Material	Zinc, Die Cast
Ingress Protection	IP67, IP65
Lock Location	Push Button Snap Lock on Hood Carrier
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size / Dimension [x]	4.094 "
Size / Dimension [x]	104 mm
Size / Dimension [y]	2.236 "
Size / Dimension [y]	56.8 mm
Size / Dimension [z]	23.4 mm
Size / Dimension [z]	0.921 "
Style	Bottom Entry

Part	Housing Color	Housing Material	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Lock Location	Housing Finish	Connector Type	Style
HARTING Technology Group 11136000100	Black	Zinc Die Cast	2.205 in	34 mm	56 mm	4.591 in	1.339 in	116.6 mm	IP65 IP67	125 °C	-40 °C	Push Button Snap Lock on Hood Carrier	Zinc Passivation	Hood - Carrier
HARTING Technology Group 11136000302		Zinc Die Cast	2.236 "	23.4 mm	56.8 mm	4.094 "	0.921 "	104 mm	IP65 IP67	125 °C	-40 °C	Push Button Snap Lock on Hood Carrier	Zinc Passivation	Base - Panel Mount	Bottom Entry
HARTING Technology Group 11136000110	Black	Zinc Die Cast	2.205 in	34 mm	56 mm	4.591 in	1.339 in	116.6 mm	IP65 IP67	125 °C	-40 °C	Push Button Snap Lock on Hood Carrier	Zinc Passivation	Hood - Carrier

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Base - Panel Mount Connector Bottom Entry IP65/IP67 - Dust Tight, Water Resistant, Waterproof
