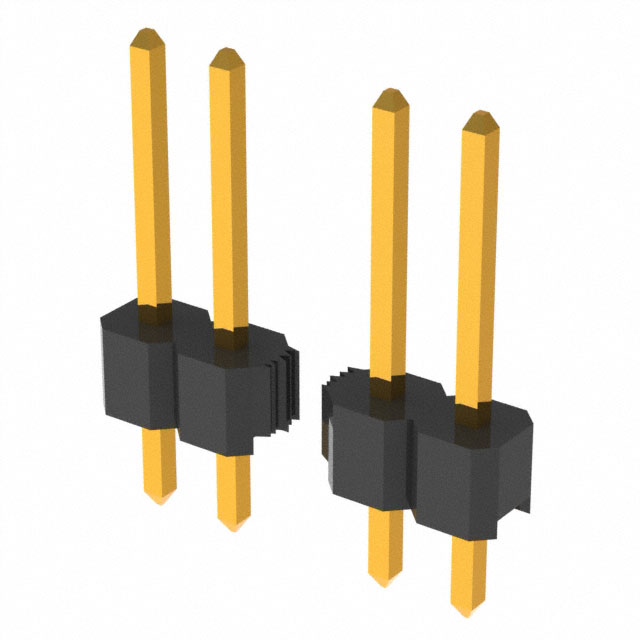

PRPC038SFAN-RC
ActiveSullins Connector Solutions
CONN HEADER VERT 38POS 2.54MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PRPC038SFAN-RC |
|---|---|
| Connector Type | Breakaway, Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Gold |
| Contact Finish Thickness - Mating | Flash |
| Contact Finish Thickness - Post | Flash |
| Contact Length - Mating [x] | 0.318 " |
| Contact Length - Mating [x] | 8.08 mm |
| Contact Length - Post [x] | 0.12 in |
| Contact Length - Post [x] | 3.05 mm |
| Contact Material | Brass |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 3 A |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height [z] | 0.098 in |
| Insulation Height [z] | 2.5 mm |
| Insulation Material | Polybutylene Terephthalate (PBT) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 38 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Overall Contact Length | 13.63 mm |
| Overall Contact Length | 0.537 " |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Shrouding | Unshrouded |
| Style | Board to Board, Cable |
| Termination | Solder |
PRPC038 Series
| Part | Pitch - Mating | Pitch - Mating | Contact Finish - Mating | Insulation Height [z] | Insulation Height [z] | Material Flammability Rating | Contact Finish Thickness - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Current Rating (Amps) | Number of Rows | Contact Shape | Contact Finish - Post | Contact Finish Thickness - Post | Number of Positions | Fastening Type | Contact Material | Mounting Type | Connector Type | Termination | Contact Length - Mating [x] | Contact Length - Mating [x] | Style | Insulation Color | Shrouding | Contact Length - Post [x] | Contact Length - Post [x] | Insulation Material | Number of Positions Loaded | Overall Contact Length | Overall Contact Length | Contact Length - Mating | Insulation Height | Insulation Height | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Overall Contact Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Sullins Connector Solutions | 0.1 in | 2.54 mm | Gold | 0.098 in | 2.5 mm | UL94 V-0 | Flash | -40 °C | 105 ░C | Male Pin | 3 A | 1 | Square | Gold | Flash | 38 | Push-Pull | Brass | Through Hole Right Angle | Breakaway Header | Solder | 0.318 " | 8.08 mm | Board to Board Cable | Black | Unshrouded | 0.12 in | 3.05 mm | Polybutylene Terephthalate (PBT) | All | ||||||||
Sullins Connector Solutions | 0.1 in | 2.54 mm | Gold | 0.098 in | 2.5 mm | UL94 V-0 | Flash | -40 °C | 105 ░C | Male Pin | 3 A | 1 | Square | Gold | Flash | 38 | Push-Pull | Brass | Through Hole | Breakaway Header | Solder | 0.318 " | 8.08 mm | Board to Board Cable | Black | Unshrouded | 0.12 in | 3.05 mm | Polybutylene Terephthalate (PBT) | All | 13.63 mm | 0.537 " | ||||||
Sullins Connector Solutions | 0.1 in | 2.54 mm | Gold | 0.098 in | 2.5 mm | UL94 V-0 | Flash | -40 °C | 105 ░C | Male Pin | 3 A | 1 | Square | Gold | Flash | 38 | Push-Pull | Brass | Through Hole Right Angle | Breakaway Header | Solder | 0.23 in | Board to Board Cable | Black | Unshrouded | 0.32 in | 8.13 mm | Polybutylene Terephthalate (PBT) | All | 5.84 mm | ||||||||
Sullins Connector Solutions | 0.1 in | 2.54 mm | Gold | 0.098 in | 2.5 mm | UL94 V-0 | Flash | -40 °C | 105 ░C | Male Pin | 3 A | 1 | Square | Gold | Flash | 38 | Push-Pull | Brass | Through Hole Right Angle | Breakaway Header | Solder | 0.23 in | Board to Board Cable | Black | Unshrouded | 0.12 in | 3.05 mm | Polybutylene Terephthalate (PBT) | All | 5.84 mm | ||||||||
Sullins Connector Solutions | 0.1 in | 2.54 mm | Gold | UL94 V-0 | Flash | -40 °C | 105 ░C | Male Pin | 3 A | 2 | Square | Gold | Flash | 76 | Push-Pull | Brass | Through Hole Right Angle | Breakaway Header | Solder | 0.23 in | Board to Board Cable | Black | Unshrouded | 0.12 in | 3.05 mm | Polybutylene Terephthalate (PBT) | All | 5.84 mm | 0.197 in | 5 mm | 2.54 mm | 0.1 in | ||||||
Sullins Connector Solutions | 0.1 in | 2.54 mm | Gold | 0.098 in | 2.5 mm | UL94 V-0 | Flash | -40 °C | 105 ░C | Male Pin | 3 A | 1 | Square | Gold | Flash | 38 | Push-Pull | Brass | Through Hole | Breakaway Header | Solder | 0.23 in | Board to Board Cable | Black | Unshrouded | 0.32 in | 8.13 mm | Polybutylene Terephthalate (PBT) | All | 16.47 mm | 5.84 mm | 0.648 in | ||||||
Sullins Connector Solutions | 0.1 in | 2.54 mm | Gold | 0.098 in | 2.5 mm | UL94 V-0 | Flash | -40 °C | 105 ░C | Male Pin | 3 A | 2 | Square | Gold | Flash | 76 | Push-Pull | Brass | Through Hole | Breakaway Header | Solder | 0.318 " | 8.08 mm | Board to Board Cable | Black | Unshrouded | 0.12 in | 3.05 mm | Polybutylene Terephthalate (PBT) | All | 13.63 mm | 0.537 " | 2.54 mm | 0.1 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.29 | |
| 10 | $ 0.98 | |||
| 100 | $ 0.76 | |||
| 500 | $ 0.64 | |||
| 1000 | $ 0.59 | |||
| 5000 | $ 0.53 | |||
Description
General part information
PRPC038 Series
Connector Header Through Hole 38 position 0.100" (2.54mm)
