E3502S.30.03

Active

Prysmian Group

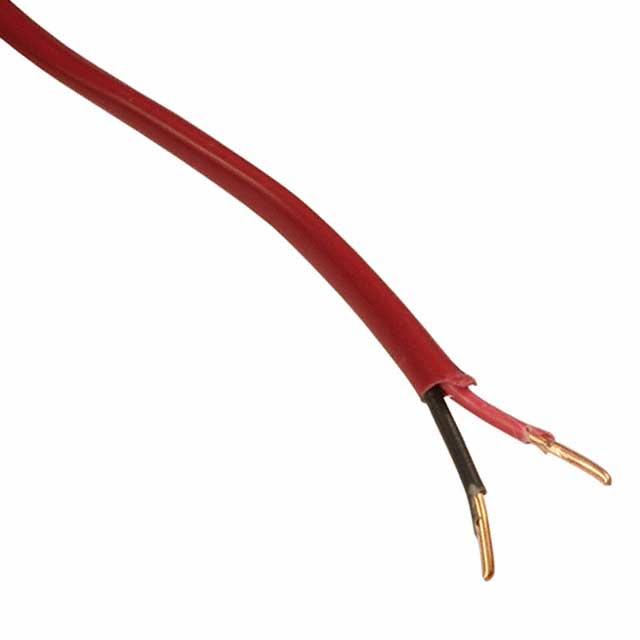

CABLE 2COND 18AWG RED

Search across all available documentation for this part.

Active

Prysmian Group

CABLE 2COND 18AWG RED

Technical Specifications

Parameters and characteristics for this part

Specification	E3502S.30.03

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Annealed Bare
Conductor Strand	Solid
Features	Rip Cord
Jacket (Insulation) Diameter [diameter]	0.155 in
Jacket (Insulation) Diameter [diameter]	3.94 mm
Jacket (Insulation) Material	Plenum, Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.015 in
Jacket (Insulation) Thickness	0.381 mm
Jacket Color	Red
Length	1000 ft
Length	304.8 m
Number of Conductors	2
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	0 °C
Ratings	ASTM B-3
Usage	Alarm, Safety
Voltage	300 V
Wire Gauge	18 AWG

Part	Operating Temperature [Max]	Operating Temperature [Min]	Wire Gauge	Voltage	Ratings	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Cable Type	Jacket Color	Conductor Insulation	Conductor Strand	Usage	Length	Length	Features	Jacket (Insulation) Material	Number of Conductors	Conductor Material
Prysmian Group E3502S.41.05	75 ░C	0 °C	18 AWG	300 V	ASTM B-3	0.155 in	3.94 mm	0.015 in	0.381 mm	Multi-Conductor	Yellow	Poly-Vinyl Chloride (PVC)	Solid	Alarm Safety	1000 ft	304.8 m	Rip Cord	Plenum Poly-Vinyl Chloride (PVC)	2	Copper Annealed Bare
Prysmian Group E3502S.30.03	75 ░C	0 °C	18 AWG	300 V	ASTM B-3	0.155 in	3.94 mm	0.015 in	0.381 mm	Multi-Conductor	Red	Poly-Vinyl Chloride (PVC)	Solid	Alarm Safety	1000 ft	304.8 m	Rip Cord	Plenum Poly-Vinyl Chloride (PVC)	2	Copper Annealed Bare

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Conductor Multi-Conductor Cable Red 18 AWG 1000.0' (304.8m)
