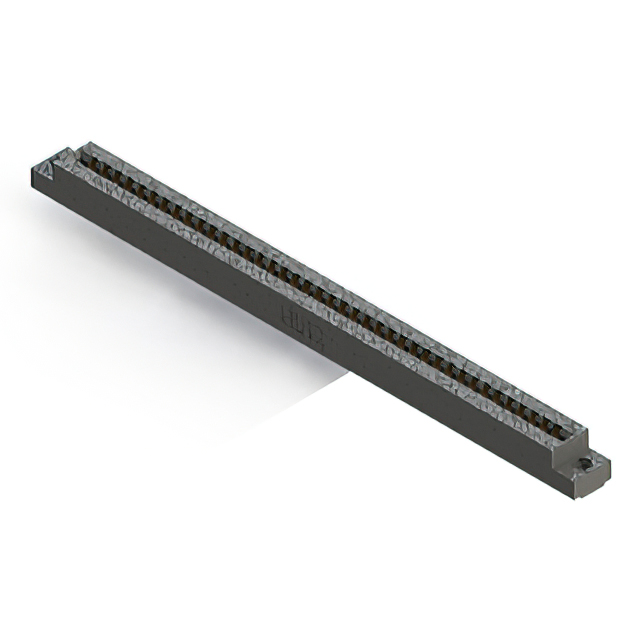

356-040-521-104
ActiveEDAC Inc.
CARD EDGE CONNECTOR ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
356-040-521-104
ActiveEDAC Inc.
CARD EDGE CONNECTOR ROHS COMPLIANT: YES
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 356-040-521-104 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.96 mm |
| Flange Feature [diameter] | 0.156 in |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole, Panel Mount |
| Number of Positions | 80 |
| Number of Positions/Bay/Row [custom] | 40 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 1 |
356-040 Series
| Part | Contact Finish | Number of Positions | Gender | Number of Rows | Material - Insulation | Termination | Color | Card Type | Contact Type | Number of Positions/Bay/Row [custom] | Contact Material | Features | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Flange Feature | Termination Rows | Pitch [x] | Pitch [x] | Read Out | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Tin | 80 | Female | 2 | Polyester Thermoplastic | Solder Eyelet(s) | Black | Non Specified - Dual Edge | Cantilever | 40 | Copper Alloy | Card Guides | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 4-40 Flush Mount Threaded Insert Top Opening | 1 | 0.156 in | 3.96 mm | Dual | -40 °C | 105 ░C | |||||
EDAC Inc. | Gold | 80 | Female | 2 | Polyester Thermoplastic | Solder | Black | Non Specified - Dual Edge | Cantilever | 40 | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 4-40 Flush Mount Threaded Insert Top Opening | 1 | 0.156 in | 3.96 mm | Dual | -40 °C | 105 ░C | Panel Mount Through Hole | 10 Áin | 0.25 Ám | |||
EDAC Inc. | Gold | 80 | Female | 2 | Polyester Thermoplastic | Solder | Black | Non Specified - Dual Edge | Cantilever | 40 | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Flush Mount M3 Threaded Insert Top Opening | 1 | 0.156 in | 3.96 mm | Dual | -40 °C | 105 ░C | Panel Mount Through Hole | 10 Áin | 0.25 Ám | |||
EDAC Inc. | Tin | 80 | Female | 2 | Polyester Thermoplastic | Solder Eyelet(s) | Black | Non Specified - Dual Edge | Cantilever | 40 | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Flush Mount Top Opening Unthreaded | 1 | 0.156 in | 3.96 mm | Dual | -40 °C | 105 ░C | 3.96 mm | 0.156 in | ||||
EDAC Inc. | Tin | 80 | Female | 2 | Polyester Thermoplastic | Solder | Black | Non Specified - Dual Edge | Cantilever | 40 | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Flush Mount Top Opening Unthreaded | 1 | 0.156 in | 3.96 mm | Dual | -40 °C | 105 ░C | Panel Mount Through Hole | 3.96 mm | 0.156 in | |||
EDAC Inc. | Gold | 80 | Female | 2 | Polyester Thermoplastic | Solder | Black | Non Specified - Dual Edge | Cantilever | 40 | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Flush Mount Top Opening Unthreaded | 1 | 0.156 in | 3.96 mm | Dual | -40 °C | 105 ░C | Panel Mount Through Hole | 10 Áin | 0.25 Ám | 3.96 mm | 0.156 in | |
EDAC Inc. | Gold | 80 | Female | 2 | Polyester Thermoplastic | Solder | Black | Non Specified - Dual Edge | Cantilever | 40 | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Flush Mount M3 Threaded Insert Top Opening | 1 | 0.156 in | 3.96 mm | Dual | -40 °C | 105 ░C | Panel Mount Through Hole | 10 Áin | 0.25 Ám | |||
EDAC Inc. | Gold | 80 | Female | 2 | Polyester Thermoplastic | Solder Eyelet(s) | Black | Non Specified - Dual Edge | Cantilever | 40 | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 4-40 Flush Mount Threaded Insert Top Opening | 1 | 0.156 in | 3.96 mm | Dual | -40 °C | 105 ░C | 10 Áin | 0.25 Ám | ||||
EDAC Inc. | Gold | 80 | Female | 2 | Polyester Thermoplastic | Solder | Black | Non Specified - Dual Edge | Cantilever | 40 | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Flush Mount Top Opening Unthreaded | 1 | 0.156 in | 3.96 mm | Dual | -40 °C | 105 ░C | Panel Mount Through Hole | 10 Áin | 0.25 Ám | 3.96 mm | 0.156 in | |
EDAC Inc. | Gold | 80 | Female | 2 | Polyester Thermoplastic | Solder | Black | Non Specified - Dual Edge | Cantilever | 40 | Copper Alloy | Card Guides | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 4-40 Flush Mount Threaded Insert Top Opening | 1 | 0.156 in | 3.96 mm | Dual | -40 °C | 105 ░C | Panel Mount Through Hole | 10 Áin | 0.25 Ám |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
356-040 Series
80 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Black
