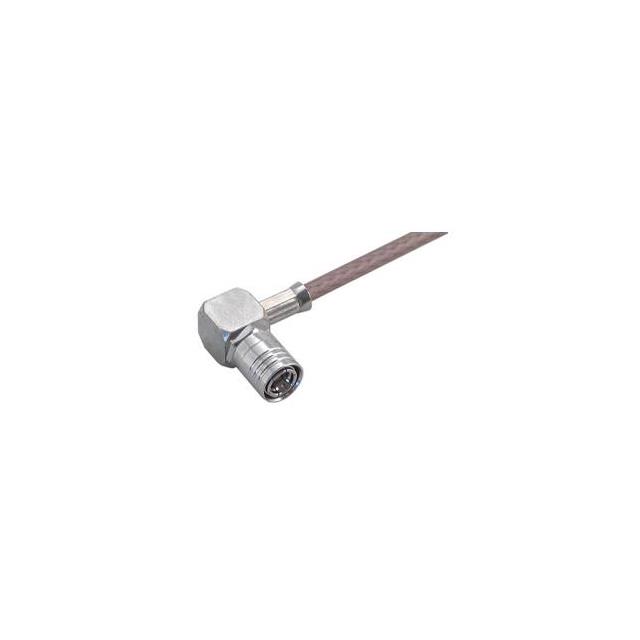

16_SMB-50-1-40/111_NE

Active

Huber+Suhner, Inc.

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

16_SMB-50-1-40/111_NE

Active

Huber+Suhner, Inc.

16_SMB-50-1-40/111_NE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	16_SMB-50-1-40/111_NE

Body Finish	Gold
Body Material	Brass
Cable Group	196
Cable Group	RG-178
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMB
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	4 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp

16_SMB-50 Series

Part	Shield Termination	Fastening Type	Connector Style	Housing Color	Contact Termination	Body Material	Center Contact Material	Number of Ports	Mounting Type	Connector Type	Body Finish	Cable Group	Operating Temperature [Min]	Operating Temperature [Max]	Mating Cycles	Center Contact Plating	Frequency - Max [Max]	Impedance	Dielectric Material	Cable Group
Huber+Suhner, Inc. 16_SMB-50-2-40/111_NE	Crimp	Snap-On	SMB	Gold	Crimp	Brass	Beryllium Copper	1	Free Hanging (In-Line) Right Angle	Male Pin Plug	Gold	188 316 RG-174	-65 ░C	165 °C	500	Gold	4 GHz	50 Ohms	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)
Huber+Suhner, Inc. 16_SMB-50-1-40/111_NE	Crimp	Snap-On	SMB	Gold	Crimp	Brass	Beryllium Copper	1	Free Hanging (In-Line) Right Angle	Male Pin Plug	Gold	RG-178	-65 ░C	165 °C	500	Gold	4 GHz	50 Ohms	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	196
Huber+Suhner, Inc. 16_SMB-50-2-51/111_NE	Crimp	Snap-On	SMB	Gold	Solder	Brass	Beryllium Copper	1	Free Hanging (In-Line) Right Angle	Male Pin Plug	Gold	RD-316	-65 ░C	165 °C	500	Gold	4 GHz	50 Ohms	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)
Huber+Suhner, Inc. 16_SMB-50-2-50/111_NE	Crimp	Snap-On	SMB	Gold	Solder	Brass	Beryllium Copper	1	Free Hanging (In-Line) Right Angle	Male Pin Plug	Gold	316 RG-188 RG-405 (.085" Semi Rigid)	-65 ░C	165 °C	500	Gold	4 GHz	50 Ohms	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)
Huber+Suhner, Inc. 16_SMB-50-2-40/111_NH	Crimp	Snap-On	SMB	Gold	Crimp	Brass	Beryllium Copper	1	Free Hanging (In-Line) Right Angle	Male Pin Plug	Gold	188 316 RG-174	-65 ░C	165 °C	500	Gold	4 GHz	50 Ohms	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)
Huber+Suhner, Inc. 16_SMB-50-1-50/111_NE	Crimp	Snap-On	SMB	Gold	Solder	Brass	Beryllium Copper	1	Free Hanging (In-Line) Right Angle	Male Pin Plug	Gold	RG-178	-65 ░C	165 °C	500	Gold	4 GHz	50 Ohms	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	196

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 39.72
		10	$ 34.79
		25	$ 33.28
		50	$ 32.21
		100	$ 31.14
		250	$ 29.42

Description

General part information

16_SMB-50 Series

SMB Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Crimp
