MN22TXW30-DA
ActiveNKK Switches

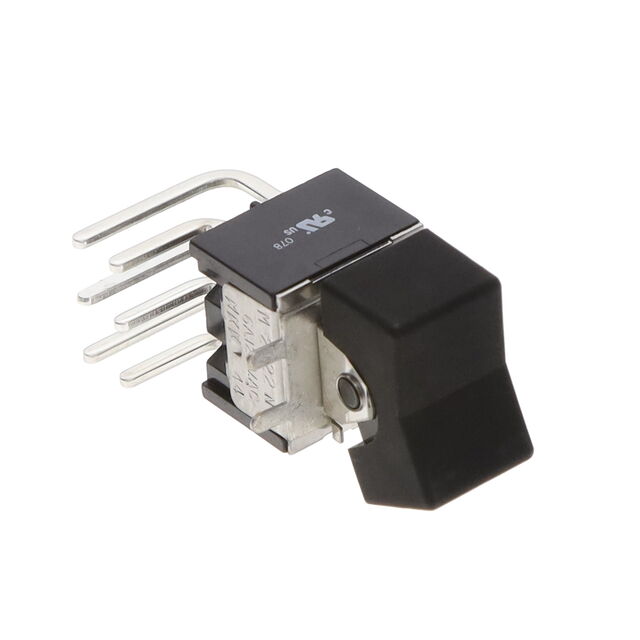

SWITCH ROCKER MINI PC MOUNT
Deep-Dive with AI
Search across all available documentation for this part.
MN22TXW30-DA
ActiveNKK Switches
SWITCH ROCKER MINI PC MOUNT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MN22TXW30-DA |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Concave (Standard V) |
| Approval Agency | UL |
| Circuit | DPDT |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 4 A, 6 A |
| Electrical Life | 25000 Steps |
| Mounting Type | Through Hole, Right Angle |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Switch Function | On-On |
| Termination Style | PC Pin |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 30 V |
MN22TX Series
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Switch Function | Current Rating (Amps) | Circuit | Termination Style | Approval Agency | Actuator Type | Mounting Type | Electrical Life | Voltage Rating - DC | Actuator Marking | Voltage Rating - AC | Color - Actuator/Cap |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
NKK Switches | -30 ░C | 85 °C | On-On | 0.4 VA | DPDT | PC Pin | UL | Actuator Arm Cap Required | Through Hole | 50000 Cycles | 28 V | Varies by Cap | 28 V | |
NKK Switches | -30 ░C | 85 °C | On-On | 4 A 6 A | DPDT | PC Pin | UL | Concave (Standard V) | Right Angle Through Hole Vertical | 25000 Steps | 30 V | No Marking | 125 V | Black |
NKK Switches | -30 ░C | 85 °C | On-On | 4 A 6 A | DPDT | PC Pin | UL | Paddle | Through Hole Right Angle | 25000 Steps | 30 V | No Marking | 125 V | Black |
NKK Switches | -30 ░C | 85 °C | On-On | 0.4 VA | DPDT | PC Pin | UL | Paddle | Through Hole | 50000 Cycles | 28 V | No Marking | 28 V | Black |
NKK Switches | -30 ░C | 85 °C | On-On | 4 A 6 A | DPDT | PC Pin | UL | Concave (Standard V) | Right Angle Through Hole Vertical | 25000 Steps | 30 V | No Marking | 125 V | Black |
NKK Switches | -30 ░C | 85 °C | On-On | 4 A 6 A | DPDT | PC Pin | UL | Concave (Standard V) | Through Hole | 25000 Steps | 30 V | No Marking | 125 V | Black |
NKK Switches | -30 ░C | 85 °C | On-On | 4 A 6 A | DPDT | PC Pin | UL | Actuator Arm Cap Required | Right Angle Through Hole Vertical | 25000 Steps | 30 V | Varies by Cap | 125 V | |
NKK Switches | -30 ░C | 85 °C | On-On | 4 A 6 A | DPDT | PC Pin | UL | Concave (Standard V) | Through Hole Right Angle | 25000 Steps | 30 V | No Marking | 125 V | Black |
NKK Switches | -30 ░C | 85 °C | On-On | 4 A 6 A | DPDT | PC Pin | UL | Concave (Standard V) | Right Angle Through Hole Vertical | 25000 Steps | 30 V | No Marking | 125 V | Red |
NKK Switches | -30 ░C | 85 °C | On-On | 0.4 VA | DPDT | PC Pin | UL | Actuator Arm Cap Required | Through Hole | 50000 Cycles | 28 V | No Marking | 28 V | Black |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 9.90 | |
| 10 | $ 9.47 | |||
| 25 | $ 8.61 | |||
| 50 | $ 8.18 | |||
| 100 | $ 7.96 | |||
| 250 | $ 7.10 | |||
| 500 | $ 6.67 | |||
| 1000 | $ 5.89 | |||
Description
General part information
MN22TX Series
Rocker Switch DPDT 6A (AC), 4A (DC) 125 V Through Hole, Right Angle
