FISD004P9

Active

Belden Inc.

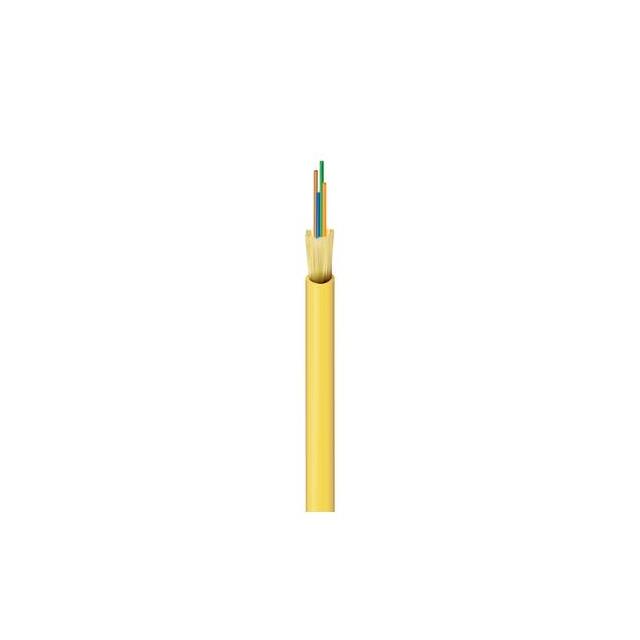

CBL FIBER OPTIC 125UM SINGLEMODE

Search across all available documentation for this part.

Active

Belden Inc.

CBL FIBER OPTIC 125UM SINGLEMODE

Technical Specifications

Parameters and characteristics for this part

Specification	FISD004P9

Cladding Diameter [diameter]	125 µm
Core Diameter [diameter]	9 µm
Features	Rip Cord
Features	4 Cable Entries
Jacket (Insulation) Diameter [diameter]	0.174 "
Jacket (Insulation) Diameter [diameter]	4.42 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Yellow
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Ratings	OFNP
Style	Multiple Fibers
Tensile Strength	20.4 kg
Type	Singlemode

Part	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Type	Jacket (Insulation) Material	Cladding Diameter [diameter]	Jacket Color	Tensile Strength	Ratings	Style	Features	Features	Core Diameter [diameter]	Operating Temperature [Max]	Operating Temperature [Min]
Belden Inc. FISD004P9	0.174 "	4.42 mm	Singlemode	Poly-Vinyl Chloride (PVC)	125 µm	Yellow	20.4 kg	OFNP	Multiple Fibers	Rip Cord	4 Cable Entries	9 µm	70 °C	0 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1640	$ 0.32

General part information

Fiber Optic Cable Yellow Singlemode 125µm
