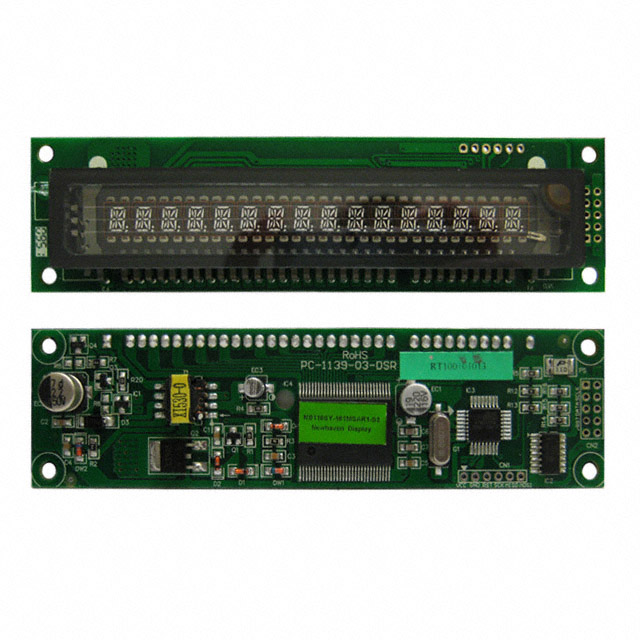

M0116SY-161MSAR1-S2
ObsoleteNewhaven Display Intl
MODULE VFD CHAR 1X16 5.00MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
M0116SY-161MSAR1-S2
ObsoleteNewhaven Display Intl
MODULE VFD CHAR 1X16 5.00MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | M0116SY-161MSAR1-S2 |
|---|---|
| Character Size [y] | 3 mm |
| Character Size [z] | 5 mm |
| Controller Type | ATMEGA+OKI-L9272 |
| Display Format [x] | 16 |
| Display Format [y] | 1 |
| Display Type | Character |
| Interface | Serial |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Outline L x W x H [x] | 125 mm |
| Outline L x W x H [y] | 33.5 mm |
| Outline L x W x H [z] | 7.93 mm |
| Viewing Area [x] | 110.2 mm |
| Viewing Area [y] | 20.5 mm |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 4.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
M0116SY Series
Vacuum Fluorescent Display (VFD) 16 x 1 Character 4.5V ~ 5.5V Serial 125.00mm x 33.50mm x 7.93mm
