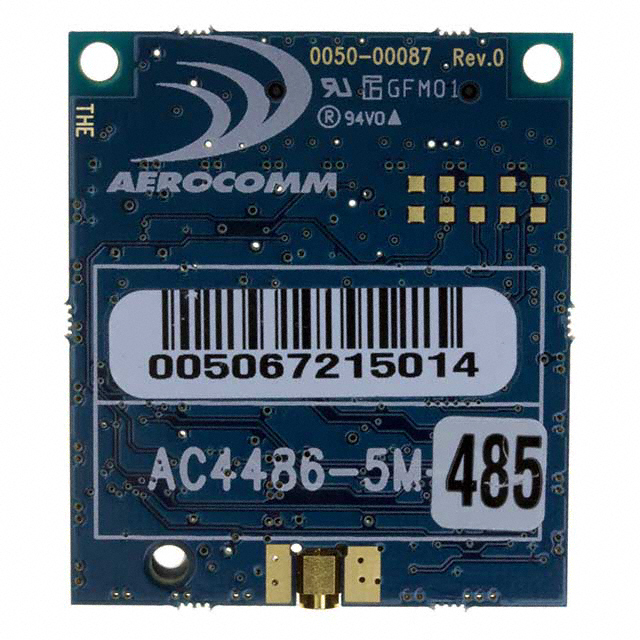

AC4486-5M-485
ActiveEzurio LLC
RF TXRX MOD ISM<1GHZ MMCX CHAS
Deep-Dive with AI
Search across all available documentation for this part.
AC4486-5M-485
ActiveEzurio LLC
RF TXRX MOD ISM<1GHZ MMCX CHAS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AC4486-5M-485 |
|---|---|
| Antenna Type | Antenna Not Included, MMCX |
| Current - Receiving | 40 mA |
| Current - Transmitting | 40 mA |
| Data Rate | 115.2 kbps |
| Frequency | 868 MHz |
| Modulation | FSK |
| Mounting Type | Chassis Mount |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Module |
| Power - Output | 7 dBm |
| RF Family/Standard | General ISM < 1GHz |
| Sensitivity | -100 dBm |
| Serial Interfaces | UART, SPI |
| Voltage - Supply | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
AC4486 Series
General ISM < 1GHz Transceiver Module 868MHz Antenna Not Included, MMCX Chassis Mount
