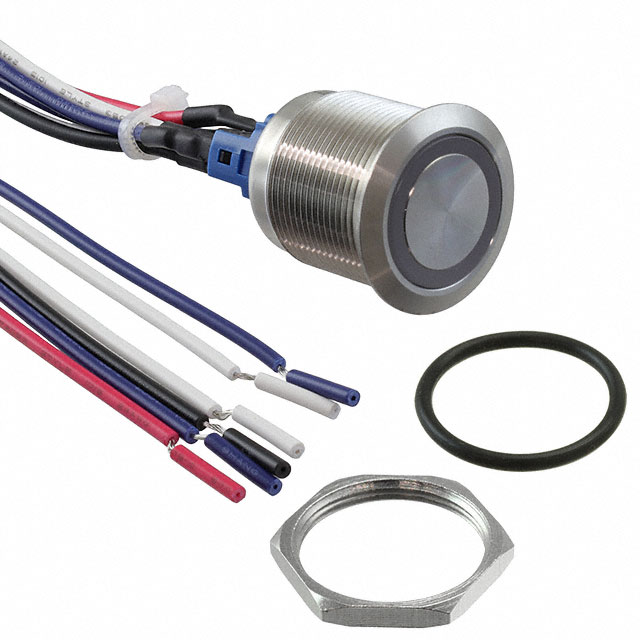

PV7FWY0SS-3R3

Active

E-Switch

SWITCH PB DPST-NO/NC 2A 48V

Search across all available documentation for this part.

Active

E-Switch

SWITCH PB DPST-NO/NC 2A 48V

Technical Specifications

Parameters and characteristics for this part

Specification	PV7FWY0SS-3R3

Actuator Marking	No Marking
Actuator Type	Flush, Button, Round
Circuit	DPST-NO/NC
Color - Actuator/Cap	Silver
Current Rating (Amps)	2 A
Electrical Life	50000 Cycles
Illumination Type, Color	Red, LED, Blue, Green
Illumination Voltage (Nominal)	6 V
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [diameter]	22 mm
Switch Function	Off-Mom, On-Mom
Termination Style	Wire Leads
Type	Anti-Vandal, Illuminated
Voltage Rating - DC	48 V

Part	Voltage Rating - DC	Switch Function	Mounting Type	Electrical Life	Actuator Type	Illumination Type, Color	Operating Temperature [Max]	Operating Temperature [Min]	Color - Actuator/Cap	Actuator Marking	Panel Cutout Dimensions [diameter]	Mechanical Life	Ingress Protection	Circuit	Termination Style	Current Rating (Amps)	Type	Illumination Voltage (Nominal)
E-Switch PV7FWY0SS-3R3	48 V	Off-Mom On-Mom	Panel Mount Front	50000 Cycles	Button Flush Round	Blue Green LED Red	55 °C	-20 C	Silver	No Marking	22 mm	1000000 Cycles	IP65 - Dust Tight Water Resistant	DPST-NO/NC	Wire Leads	2 A	Anti-Vandal Illuminated	6 V
E-Switch PV7FWY0SS-341	48 V	Off-Mom On-Mom	Panel Mount Front	50000 Cycles	Button Flush Round	Blue LED	55 °C	-20 C	Silver	No Marking	22 mm	1000000 Cycles	IP65 - Dust Tight Water Resistant	DPST-NO/NC	Wire Leads	2 A	Anti-Vandal Illuminated	2.8 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch DPST-NO/NC Anti-Vandal, Illuminated Panel Mount, Front
