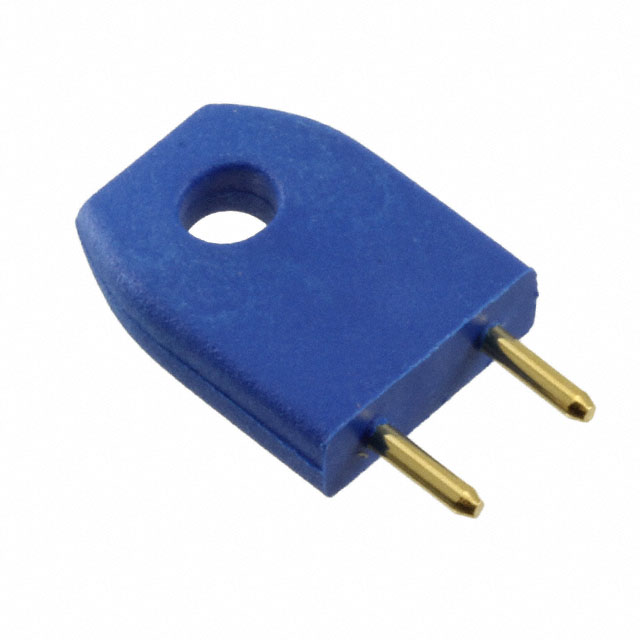

D3086-97

Active

Harwin Inc.

CONNECTOR ACCESSORY, SHORTING LINK, H3161, H3163 SERIES PC BOARD SOCKETS, 2, 5.08 MM ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Harwin Inc.

CONNECTOR ACCESSORY, SHORTING LINK, H3161, H3163 SERIES PC BOARD SOCKETS, 2, 5.08 MM ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	D3086-97

Color	Blue
Contact Finish	Gold
Current Rating (Amps)	10 A
Gender	Male Pins
Height [z]	0.5 in
Height [z]	12.7 mm
Housing Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Number of Positions or Pins (Grid) [custom]	1 x 2
Number of Positions or Pins (Grid) [custom]	2
Pitch [x]	0.2 in
Pitch [x]	5.08 mm
Type	Closed Top, Grip

Part	Current Rating (Amps)	Housing Material	Material Flammability Rating	Height [z]	Height [z]	Type	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Color	Contact Finish	Pitch [x]	Pitch [x]	Gender
Harwin Inc. D3086-99	10 A	Polybutylene Terephthalate (PBT)	UL94 V-0	0.5 in	12.7 mm	Closed Top Grip	1 x 2	2	Red	Gold	0.2 in	5.08 mm	Male Pins
Harwin Inc. D3086-98	10 A	Polybutylene Terephthalate (PBT)	UL94 V-0	0.5 in	12.7 mm	Closed Top Grip	1 x 2	2	Black	Gold	0.2 in	5.08 mm	Male Pins
Harwin Inc. D3086-97	10 A	Polybutylene Terephthalate (PBT)	UL94 V-0	0.5 in	12.7 mm	Closed Top Grip	1 x 2	2	Blue	Gold	0.2 in	5.08 mm	Male Pins

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 (1 x 2) Position Shunt Connector Blue Closed Top, Grip 0.200" (5.08mm) Gold
