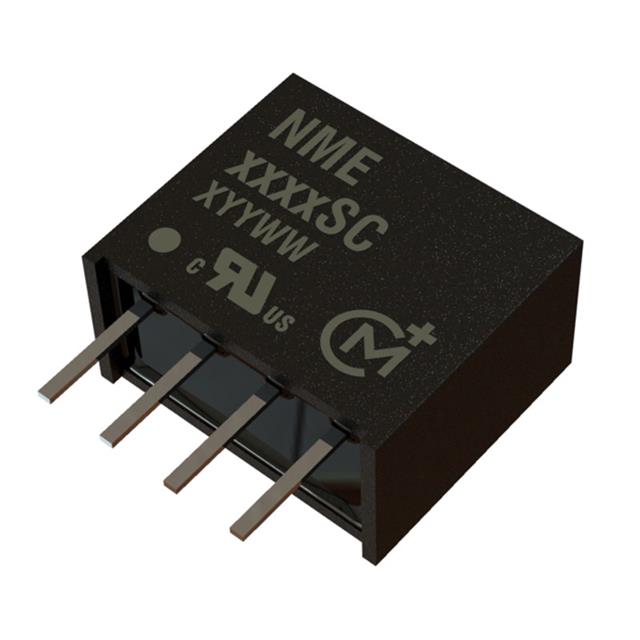

NME1209SC

Obsolete

Murata Power Solutions Inc.

DC DC CONVERTER 9V 1W

Search across all available documentation for this part.

Obsolete

Murata Power Solutions Inc.

DC DC CONVERTER 9V 1W

Technical Specifications

Parameters and characteristics for this part

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Current - Output (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 1	Number of Outputs	Voltage - Input (Max) [Max]	Package / Case	Package / Case	Voltage - Isolation	Voltage - Input (Min) [Min]	Type	Mounting Type	Applications	Efficiency
Murata Power Solutions Inc. NME1212DC	9.9 mm	0.45 in	0.39 "	6.9 mm	11.4 mm	0.27 "	83 mA	85 °C	-40 °C	12 V	1	13.2 V	8-DIP Module	4 Lead	1000 V	10.8 V	Isolated Module	Through Hole	ITE (Commercial)	76 %
Murata Power Solutions Inc. NME1205SC							200 mA	85 °C	-40 °C	5 V	1	13.2 V	4-SIP Module		1000 V	10.8 V	Isolated Module	Through Hole	ITE (Commercial)	74 %
Murata Power Solutions Inc. NME1209SC								85 °C	-40 °C	9 V	1	13.2 V	4-SIP Module		1000 V	10.8 V	Isolated Module	Through Hole	ITE (Commercial)	74 %
Murata Power Solutions Inc. NME1215DC	9.9 mm	0.45 in	0.39 "	6.9 mm	11.4 mm	0.27 "	66 mA	85 °C	-40 °C	15 V	1	13.2 V	8-DIP Module	4 Lead	1000 V	10.8 V	Isolated Module	Through Hole	ITE (Commercial)	75 %
Murata Power Solutions Inc. NME1215SC							66 mA	85 °C	-40 °C	15 V	1	13.2 V	4-SIP Module		1000 V	10.8 V	Isolated Module	Through Hole	ITE (Commercial)	75 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Isolated Module DC DC Converter 1 Output 9V 111mA 10.8V - 13.2V Input

Technical documentation and resources
