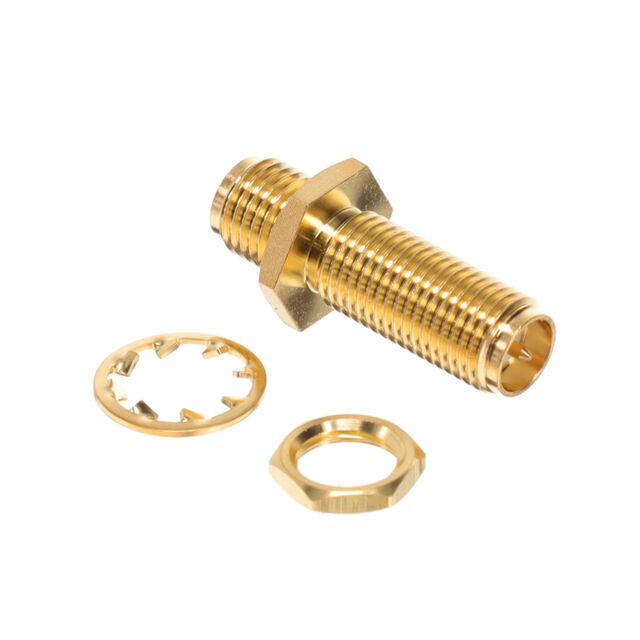

132170RP-RP
ActiveAmphenol RF
ADAPTER RP SMA JACK TO JACK
Deep-Dive with AI
Search across all available documentation for this part.
132170RP-RP
ActiveAmphenol RF
ADAPTER RP SMA JACK TO JACK
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 132170RP-RP |
|---|---|
| Adapter Series | RP-SMA to RP-SMA |
| Adapter Type | Jack to Jack |
| Body Finish | Gold |
| Body Material | Brass |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Conversion Type | Same Series |
| Convert From (Adapter End) | RP-SMA Jack, Male Pin |
| Convert To (Adapter End) | RP-SMA Jack, Male Pin |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Frequency - Max [Max] | 18 GHz |
| Impedance | 50 Ohms |
| Mounting Feature | Bulkhead |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Style | Straight |
132170 Series
| Part | Center Contact Material | Body Finish | Operating Temperature [Min] | Operating Temperature [Max] | Adapter Type | Frequency - Max [Max] | Conversion Type | Style | Dielectric Material | Convert From (Adapter End) | Mounting Feature | Adapter Series | Center Contact Plating | Convert To (Adapter End) | Impedance | Body Material | Includes | Center Gender | Mating Cycles | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol RF | Beryllium Copper | Gold | -65 ░C | 165 °C | Jack to Jack | 18 GHz | Same Series | Straight | Polytetrafluoroethylene (PTFE) | RP-SMA Jack Male Pin | Bulkhead | RP-SMA to RP-SMA | Gold | Male Pin RP-SMA Jack | 50 Ohms | Brass | ||||
Amphenol RF | Beryllium Copper | Gold | -65 ░C | 165 °C | Jack to Jack | 18 GHz | Same Series | Straight | Polytetrafluoroethylene (PTFE) | Female Socket SMA Jack | Bulkhead | SMA to SMA | Gold | Female Socket SMA Jack | 50 Ohms | Brass | 1 Connector 1 Lockwasher 1 Nut | Female to Female | ||
Amphenol RF | Brass | Gold | -65 ░C | 165 °C | Jack to Jack | 18 GHz | Same Series | Straight | Polytetrafluoroethylene (PTFE) | RP-SMA Jack Male Pin | Bulkhead | RP-SMA to RP-SMA | Gold | Male Pin RP-SMA Jack | 50 Ohms | Brass | 1 Connector 1 Lockwasher 1 Nut | Male to Male | ||
Amphenol RF | Beryllium Copper | Nickel | -65 ░C | 165 °C | Jack to Jack | 18 GHz | Same Series | Straight | Polytetrafluoroethylene (PTFE) | Female Socket SMA Jack | Bulkhead | SMA to SMA | Gold | Female Socket SMA Jack | 50 Ohms | Brass | Female to Female | 500 | IP68 - Dust Tight Waterproof | |
Amphenol RF | Beryllium Copper | Gold | -65 ░C | 165 °C | Jack to Jack | 18 GHz | Same Series | Straight | Polytetrafluoroethylene (PTFE) | Female Socket SMA Jack | Bulkhead | SMA to SMA | Gold | Female Socket SMA Jack | 50 Ohms | Brass | 1 Connector 1 Gasket 1 Lockwasher 1 Nut | Female to Female | 500 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 16.76 | |
| 10 | $ 14.53 | |||
| 25 | $ 13.77 | |||
| 50 | $ 13.57 | |||
| 100 | $ 11.97 | |||
| 300 | $ 11.17 | |||
| 500 | $ 10.94 | |||
Description
General part information
132170 Series
Adapter Coaxial Connector RP-SMA Jack, Male Pin To RP-SMA Jack, Male Pin 50 Ohms
