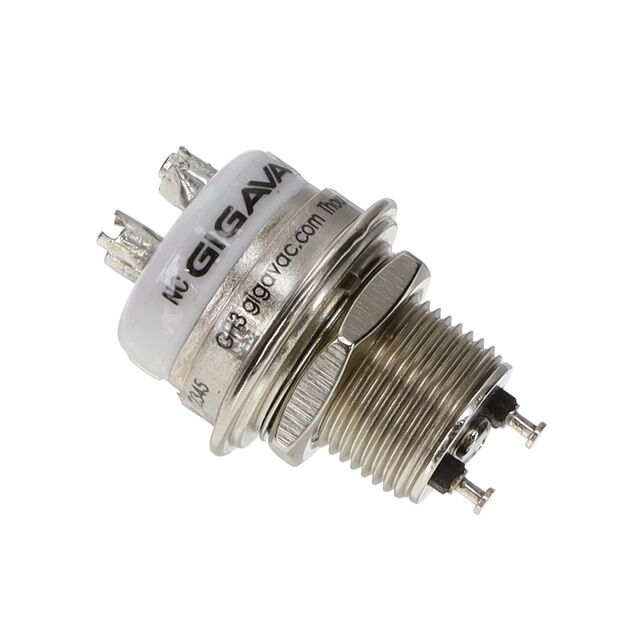

GH3
ActiveSensata - Gigavac Industrial
3.5KV SPDT HV RELAY
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
GH3
ActiveSensata - Gigavac Industrial
3.5KV SPDT HV RELAY
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | GH3 |
|---|---|
| Coil Current | 91.1 mA |
| Coil Type | Non Latching |
| Coil Voltage | 26.5 VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Material | Tungsten (W) |
| Contact Rating (Current) | 18 A |
| Must Operate Voltage | 16 VDC |
| Must Release Voltage | 1 VDC |
| Operate Time | 6 ms |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Relay Type | General Purpose |
| Release Time | 6 ms |
| Switching Voltage | 3500 VAC, 3500 VDC |
| Termination Style | Solder Turret |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 452.40 | |
| 10 | $ 436.24 | |||
Description
General part information
- Series
General Purpose Relay SPDT (1 Form C) 26.5VDC Coil Panel Mount
