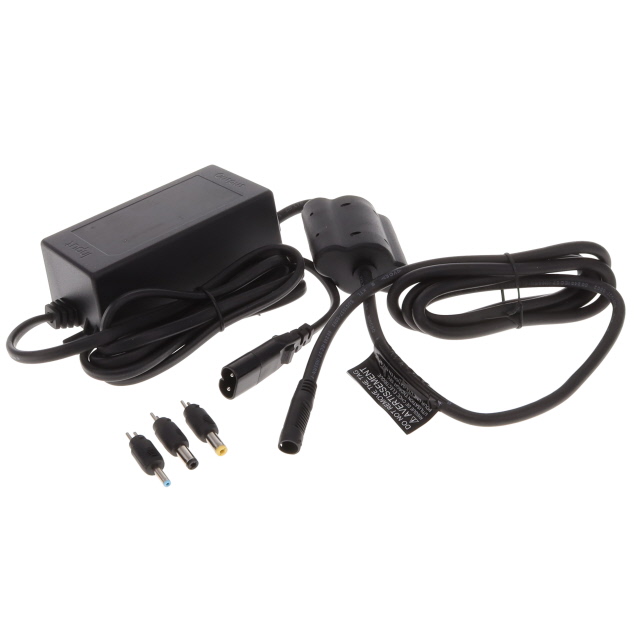

PR9KY1800T00-IMR6B

Active

GlobTek, Inc.

AC/DC DESKTOP ADAPTER 36V 65W

Search across all available documentation for this part.

Active

GlobTek, Inc.

AC/DC DESKTOP ADAPTER 36V 65W

Technical Specifications

Parameters and characteristics for this part

Specification	PR9KY1800T00-IMR6B

Applications	ITE (Commercial), Medical
Approval Agency	CB, UKRSepro, EAC, CE, S-Mark, PSE, RCM, VCCI, LPS, cETLus
Cord Length	1.5 m
Cord Length	59 in
Current - Output (Max) [Max]	1.8 A
Efficiency	Level VI, CoC Tier 1
Features	Ruggedized, IP68 - Dust Tight, Waterproof
Form	Desktop (Class II)
Input Connector	IEC 320-C8
Input Type	Cord
No Load Power Consumption [Max]	150 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	-20 C
Output Connector	Barrel Plug Kit, 1.3mm x 3.5mm
Power (Watts)	65 W
Region Utilized	International
Size / Dimension [x]	4.91 in
Size / Dimension [x]	124.8 mm
Size / Dimension [y]	57.1 mm
Size / Dimension [y]	2.25 in
Size / Dimension [z]	1.54 "
Size / Dimension [z]	39 mm
Standard Number	60950-1, 60601-1, 62368-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	36 V

Part	Form	Standard Number	Approval Agency	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Input Type	Voltage - Input [Min]	Voltage - Input [Max]	No Load Power Consumption [Max]	Efficiency	Input Connector	Features	Region Utilized	Power (Watts)	Current - Output (Max) [Max]	Voltage - Output	Applications	Cord Length	Cord Length	Output Connector	Operating Temperature [Min]	Operating Temperature [Max]
GlobTek, Inc. PR9KY1800T00-IMR6B	Desktop (Class II)	60601-1 60950-1 62368-1	CB CE cETLus EAC LPS PSE RCM S-Mark UKRSepro VCCI	4.91 in	1.54 "	124.8 mm	57.1 mm	39 mm	2.25 in	Cord	90 VAC	264 VAC	150 mW	CoC Tier 1 Level VI	IEC 320-C8	IP68 - Dust Tight Ruggedized Waterproof	International	65 W	1.8 A	36 V	ITE (Commercial) Medical	1.5 m	59 in	1.3mm x 3.5mm Barrel Plug Kit	-20 C	40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 25.79

General part information

36V 65 W AC/DC External Desktop (Class II) Adapter Cord (Sold Separately) Input
