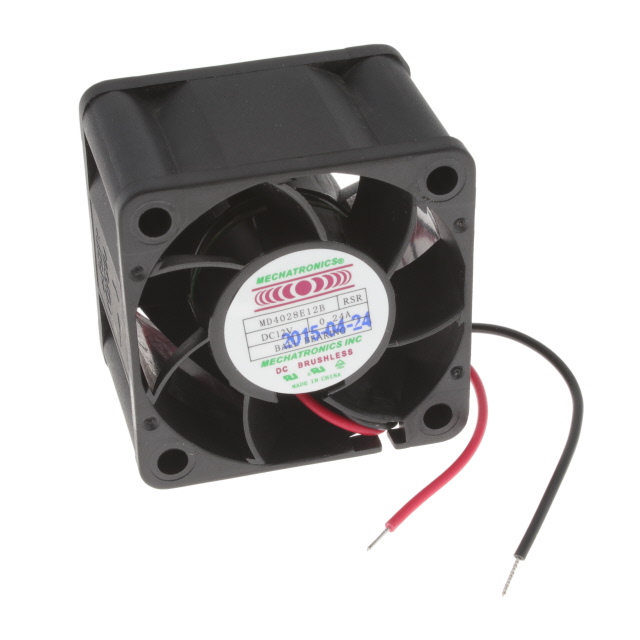

MD4028E12B-RSR
ActiveMechatronics Bearing Group
FAN AXIAL 40X28MM 12VDC WIRE
Deep-Dive with AI
Search across all available documentation for this part.
MD4028E12B-RSR
ActiveMechatronics Bearing Group
FAN AXIAL 40X28MM 12VDC WIRE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MD4028E12B-RSR |
|---|---|
| Air Flow | 15.2 CFM |
| Air Flow | 0.426 m³/min |
| Approval Agency | cUL, TUV, UL |
| Bearing Type | Ball |
| Current Rating (Amps) | 0.24 A |
| Fan Type | Tubeaxial |
| Features | Thermal Overload Protector (TOP) |
| Material - Blade | Polybutylene Terephthalate (PBT) |
| Noise | 44 dB |
| RPM | 10300 RPM |
| Size / Dimension | Square |
| Size / Dimension [x] | 40 mm |
| Size / Dimension [z] | 40 mm |
| Static Pressure | 166.9 Pa |
| Static Pressure | 0.67 in H2O |
| Termination | 2 Wire Leads |
| Voltage - Rated | 12 VDC |
| Weight | 0.111 lb |
| Weight | 50.35 g |
| Width [y] | 28 mm |
MD4028 Series
| Part | Size / Dimension [z] | Size / Dimension | Size / Dimension [x] | Width [y] | Current Rating (Amps) | Bearing Type | Air Flow | Air Flow | Termination | Static Pressure | Static Pressure | Features | Fan Type | Material - Blade | RPM | Approval Agency | Weight | Weight | Voltage - Rated | Noise |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Mechatronics Bearing Group | 40 mm | Square | 40 mm | 28 mm | 0.21 A | Ball | 13.6 CFM | 0.381 mł/min | 3 Wire Leads | 0.533 in H2O | 132.8 Pa | Speed Sensor (Tach) Thermal Overload Protector (TOP) | Tubeaxial | Polybutylene Terephthalate (PBT) | 9200 RPM | cUL TUV UL | 0.111 lb | 50.35 g | 12 VDC | 41 dB |
Mechatronics Bearing Group | 40 mm | Square | 40 mm | 28 mm | 0.35 A | Ball | 18.7 CFM | 0.524 mł/min | 2 Wire Leads | Thermal Overload Protector (TOP) | Tubeaxial | Polybutylene Terephthalate (PBT) | 11500 RPM | cUL TUV UL | 0.111 lb | 50.35 g | 12 VDC | |||
Mechatronics Bearing Group | 40 mm | Square | 40 mm | 28 mm | 0.24 A | Ball | 15.2 CFM | 0.426 m³/min | 2 Wire Leads | 0.67 in H2O | 166.9 Pa | Thermal Overload Protector (TOP) | Tubeaxial | Polybutylene Terephthalate (PBT) | 10300 RPM | cUL TUV UL | 0.111 lb | 50.35 g | 12 VDC | 44 dB |
Mechatronics Bearing Group | 40 mm | Square | 40 mm | 28 mm | 140 mA | Ball | 11.8 CFM | 0.33 mł/min | 2 Wire Leads | 0.403 in H2O | 100.4 Pa | Thermal Overload Protector (TOP) | Tubeaxial | Polybutylene Terephthalate (PBT) | 8000 RPM | cUL TUV UL | 0.111 lb | 50.35 g | 12 VDC | 37.2 dB(A) |
Mechatronics Bearing Group | 40 mm | Square | 40 mm | 28 mm | 0.18 A | Ball | 18.7 CFM | 0.524 mł/min | 2 Wire Leads | Conformal Coating Thermal Overload Protector (TOP) | Tubeaxial | Polybutylene Terephthalate (PBT) | 11500 RPM | cUL TUV UL | 0.111 lb | 50.35 g | 24 VDC | |||
Mechatronics Bearing Group | 40 mm | Square | 40 mm | 28 mm | 0.2 A | Ball | 18.7 CFM | 0.524 mł/min | 2 Wire Leads | Thermal Overload Protector (TOP) | Tubeaxial | Polybutylene Terephthalate (PBT) | 11500 RPM | cUL TUV UL | 0.111 lb | 50.35 g | 24 VDC | |||
Mechatronics Bearing Group | 40 mm | Square | 40 mm | 28 mm | 0.18 A | Ball | 18.7 CFM | 0.524 mł/min | 2 Wire Leads | Thermal Overload Protector (TOP) | Tubeaxial | Polybutylene Terephthalate (PBT) | 11500 RPM | cUL TUV UL | 0.111 lb | 50.35 g | 24 VDC | |||
Mechatronics Bearing Group | 40 mm | Square | 40 mm | 28 mm | 0.24 A | Ball | 15.2 CFM | 0.426 m³/min | 3 Wire Leads | 0.67 in H2O | 166.9 Pa | Locked Rotor Sensor Thermal Overload Protector (TOP) | Tubeaxial | Polybutylene Terephthalate (PBT) | 10300 RPM | cUL TUV UL | 0.111 lb | 50.35 g | 12 VDC | 44 dB |
Mechatronics Bearing Group | 40 mm | Square | 40 mm | 28 mm | 650 mA | Ball | 24.3 CFM | 0.68 m³/min | 2 Wire Leads | 1.206 in H2O | 300.4 Pa | Conformal Coating Thermal Overload Protector (TOP) | Tubeaxial | Polybutylene Terephthalate (PBT) | 15000 RPM | cUL TUV UL | 0.111 lb | 50.35 g | 12 VDC | 53.1 dB(A) |
Mechatronics Bearing Group | 40 mm | Square | 40 mm | 28 mm | Ball | 2 Wire Leads | Thermal Overload Protector (TOP) | Tubeaxial | Polybutylene Terephthalate (PBT) | cUL TUV UL | 0.111 lb | 50.35 g | 12 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 70 | $ 9.63 | |
Description
General part information
MD4028 Series
Fan Tubeaxial 12VDC Square - 40mm L x 40mm H Ball 15.2 CFM (0.426m³/min) 2 Wire Leads
