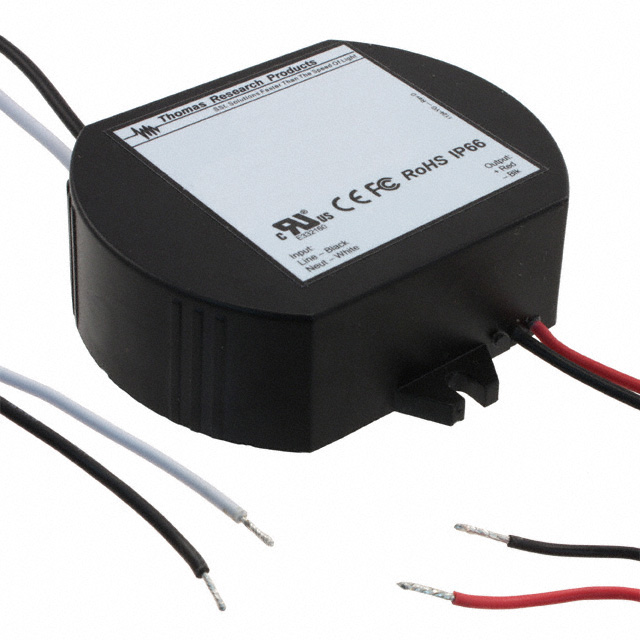

LED25W-24

Active

Thomas Research Products

LED DRIVER CV AC/DC 24V 1.04A

Search across all available documentation for this part.

Active

Thomas Research Products

LED DRIVER CV AC/DC 24V 1.04A

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Input (Min) [Min]	Efficiency	Ratings	Voltage - Output	Type	Power (Watts)	Approval Agency	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]	Termination Style	Number of Outputs	Weight	Weight	Mounting Type	Features	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Topology	Voltage - Output [Min]	Voltage - Output [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]
Thomas Research Products LED25W-24	90 VAC	83 %	IP66	24 V	Constant Voltage	25 W	CE cULus	1.04 A	305 VAC	Wire Leads	1	198 g	0.437 lb	Chassis Mount	OCP OVP SCP	80 mm	78 mm	3.07 "	0.99 in	3.15 in	25.2 mm	AC DC Converter
Thomas Research Products LED25W-36-C0620	90 VAC	84 %	IP66		Constant Current	25 W	CE cULus	620 mA	305 VAC	Wire Leads	1	198 g	0.437 lb	Chassis Mount	OCP OVP SCP	80 mm	78 mm	3.07 "	0.99 in	3.15 in	25.2 mm	AC DC Converter	12 V	36 V
Thomas Research Products LED25W-12-C2080	90 VAC	81 %	IP66		Constant Current	25 W	CE cURus	2.08 A	305 VAC	Wire Leads	1	198 g	0.437 lb	Chassis Mount	OCP OVP SCP			62 mm	25.2 mm	80 mm		AC DC Converter	6 V	12 V	2.44 "	3.15 in	0.99 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 39.89

General part information

1.04A 24V Constant Voltage LED Driver AC DC Converter Topology 1 Output
