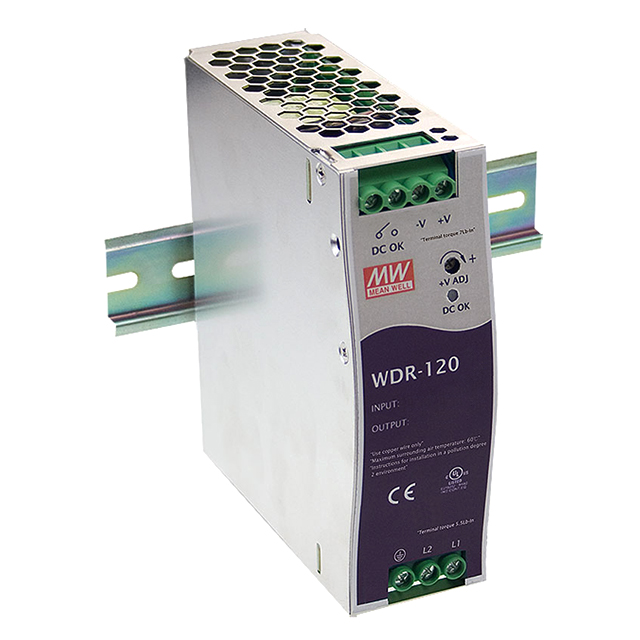

WDR-120-12
ActiveMEAN WELL USA Inc.
AC/DC DIN RAIL SUPPLY 12V 120W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
WDR-120-12
ActiveMEAN WELL USA Inc.
AC/DC DIN RAIL SUPPLY 12V 120W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | WDR-120-12 |
|---|---|
| AC Voltage - Input [Max] | 550 VAC |
| AC Voltage - Input [Min] | 180 VAC |
| Applications | Industrial, ITE (Commercial) |
| Approval Agency | CE, CB, cULus |
| Current - Output (Max) [Max] | 10 A |
| DC Voltage - Input (Max) [Max] | 780 V |
| DC Voltage - Input (Min) [Min] | 254 V |
| Features | Adjustable Output |
| Input Type | AC or DC |
| Minimum Load Required | False |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Size / Dimension [x] | 113.5 mm |
| Size / Dimension [x] | 4.47 in |
| Size / Dimension [y] | 1.57 " |
| Size / Dimension [y] | 40 mm |
| Size / Dimension [z] | 4.93 in |
| Size / Dimension [z] | 125.2 mm |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 76.45 | |
| 5 | $ 69.86 | |||
| 10 | $ 67.19 | |||
| 25 | $ 63.83 | |||
Description
General part information
WDR-120 Series
AC/DC DIN RAIL SUPPLY 12V 120W
