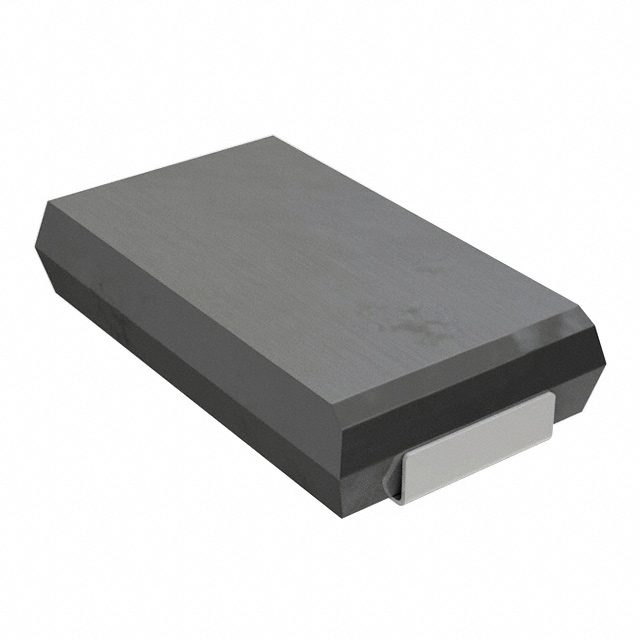

T545W477M006ATE035
ActiveKEMET
TANTALUM POLYMER CAPACITOR, 470 ΜF, ± 20%, 6.3 V, W, 0.035 OHM, 2917 [7343 METRIC]
Deep-Dive with AI
Search across all available documentation for this part.
T545W477M006ATE035
ActiveKEMET
TANTALUM POLYMER CAPACITOR, 470 ΜF, ± 20%, 6.3 V, W, 0.035 OHM, 2917 [7343 METRIC]
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | T545W477M006ATE035 |
|---|---|
| Capacitance | 470 µF |
| ESR (Equivalent Series Resistance) | 35 mOhm |
| Features | General Purpose |
| Height - Seated (Max) [Max] | 1.5 mm |
| Height - Seated (Max) [Max] [z] | 0.059 " |
| Manufacturer Size Code | W |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 7343 Metric |
| Package / Case | 2917 |
| Size / Dimension [x] | 0.287 " |
| Size / Dimension [x] | 7.3 mm |
| Size / Dimension [y] | 4.3 mm |
| Size / Dimension [y] | 0.169 " |
| Tolerance | 20 % |
| Type | Molded |
| Voltage - Rated | 6.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.40 | |
| 10 | $ 1.85 | |||
| 50 | $ 1.70 | |||
| 100 | $ 1.41 | |||
| 500 | $ 1.13 | |||
| Digi-Reel® | 1 | $ 2.40 | ||
| 10 | $ 1.85 | |||
| 50 | $ 1.70 | |||
| 100 | $ 1.41 | |||
| 500 | $ 1.13 | |||
| Tape & Reel (TR) | 1000 | $ 0.99 | ||
| 2000 | $ 0.95 | |||
| 5000 | $ 0.92 | |||
| 10000 | $ 0.90 | |||
| Newark | Each (Supplied on Full Reel) | 1000 | $ 1.14 | |
| 2000 | $ 1.08 | |||
| 4000 | $ 0.97 | |||
| 6000 | $ 0.93 | |||
| 10000 | $ 0.90 | |||
Description
General part information
T545W Series
470 µF Molded Tantalum Polymer Capacitor 6.3 V 2917 (7343 Metric) 35mOhm @ 100kHz
