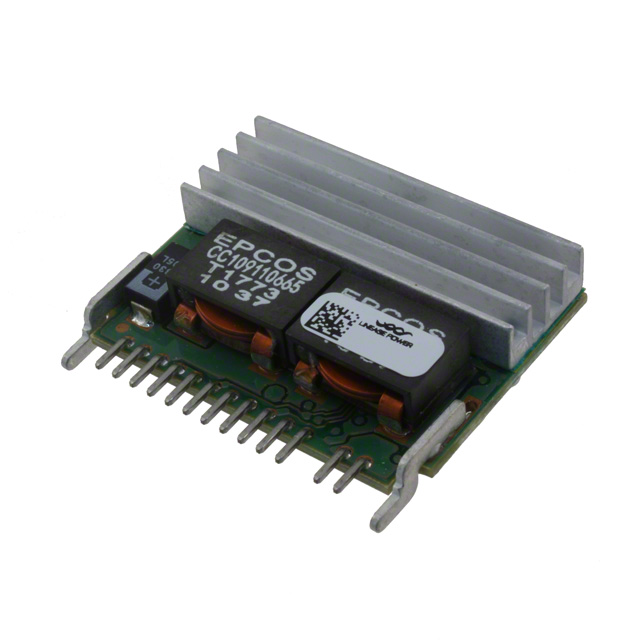

NSR040A0X43Z
ObsoleteOmniOn Power™
DC DC CONVERTER 0.6-5V 200W
Deep-Dive with AI
Search across all available documentation for this part.
NSR040A0X43Z
ObsoleteOmniOn Power™
DC DC CONVERTER 0.6-5V 200W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | NSR040A0X43Z |
|---|---|
| Applications | ITE (Commercial) |
| Control Features | Active High, Enable |
| Current - Output (Max) [Max] | 40 A |
| Efficiency | 93.7 % |
| Features | OTP, Remote On/Off, OVP, UVLO, OCP |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | 0 °C |
| Package / Case | 15-SIP Module |
| Power (Watts) | 200 W |
| Size / Dimension [x] | 1.45 " |
| Size / Dimension [x] | 36.8 mm |
| Size / Dimension [y] | 0.42 " |
| Size / Dimension [y] | 10.7 mm |
| Size / Dimension [z] | 27.9 mm |
| Size / Dimension [z] | 1.1 in |
| Type | Non-Isolated PoL Module |
| Voltage - Input (Max) [Max] | 13.8 V |
| Voltage - Input (Min) [Min] | 5 V |
| Voltage - Output 1 [Max] | 5 V |
| Voltage - Output 1 [Min] | 0.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 35.69 | |
| 5 | $ 33.65 | |||
| 10 | $ 32.80 | |||
| 25 | $ 31.72 | |||
Description
General part information
NSR040 Series
Non-Isolated PoL Module DC DC Converter 1 Output 0.6 ~ 5V 40A 5V - 13.8V Input
Documents
Technical documentation and resources
No documents available
