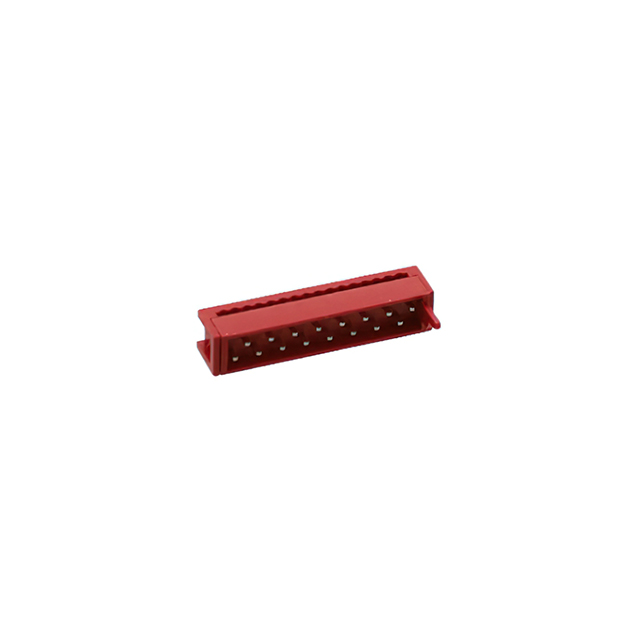

3530-16-0101-99
ActiveCnC Tech, LLC
CONN PLUG 16POS IDC TIN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
3530-16-0101-99
ActiveCnC Tech, LLC
CONN PLUG 16POS IDC TIN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 3530-16-0101-99 |
|---|---|
| Cable Termination | IDC |
| Connector Type | Plug |
| Contact Finish | Tin |
| Contact Type | Male Pin |
| Features | Feed Through |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Number of Positions | 16 |
| Number of Rows | 2 |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Row Spacing [Max] | 1.5 mm |
| Row Spacing [Max] | 0.059 in |
| Wire Type | Ribbon Cable |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 0.68 | |
| 10 | $ 0.57 | |||
| 25 | $ 0.55 | |||
| 40 | $ 0.54 | |||
| 80 | $ 0.52 | |||
| 230 | $ 0.47 | |||
| 440 | $ 0.42 | |||
| 1320 | $ 0.41 | |||
Description
General part information
3530-16 Series
16 Position Rectangular Plug Connector IDC Tin
