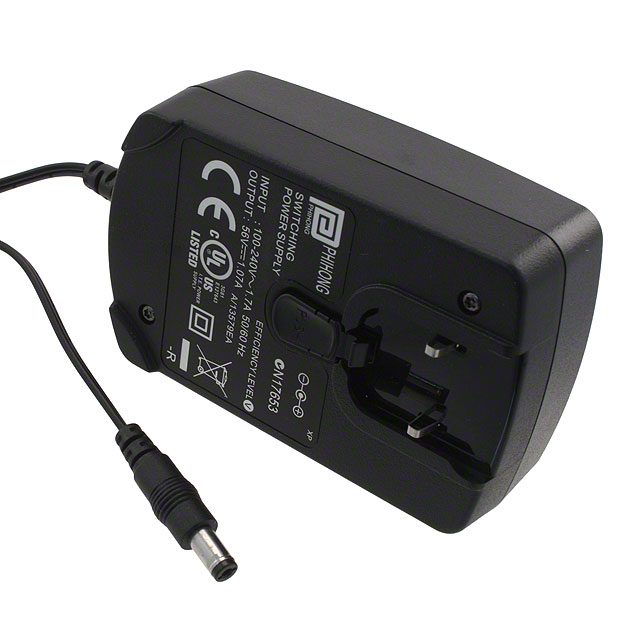

PSA60R-240-R

Obsolete

Phihong USA

AC/DC WALL MOUNT ADAPTER 24V 60W

Search across all available documentation for this part.

Obsolete

Phihong USA

AC/DC WALL MOUNT ADAPTER 24V 60W

Technical Specifications

Parameters and characteristics for this part

Part	Form	Polarization	Output Connector [z]	Output Connector [diameter]	Output Connector	Current - Output (Max) [Max]	Input Connector	Applications	Efficiency	No Load Power Consumption	Voltage - Output	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Operating Temperature [Max]	Operating Temperature [Min]	Weight	Weight	Voltage - Input [Min]	Voltage - Input [Max]	Power (Watts)	Region Utilized	Cord Length	Cord Length	Approval Agency	Input Type
Phihong USA PSA60R-240-R	Wall Mount (Class II)	Positive Center	10 mm	2.1 mm 5.5 mm	Barrel Plug	2.5 A	Multi-Blade	ITE (Commercial)	Level V	300 mW	24 V	4.06 "	66 mm	39.9 mm	2.59 in	1.57 "	103 mm	40 °C	0 °C	0.594 lb	269.43 g	90 VAC	264 VAC	60 W	International	1.5 m	59 in	CE cULus	Multi-Blade (Sold Separately)
Phihong USA PSA60R-120-R	Wall Mount (Class II)	Positive Center	10 mm	2.1 mm 5.5 mm	Barrel Plug	5 A	Multi-Blade	ITE (Commercial)	Level V	300 mW	12 V	4.06 "	66 mm	39.9 mm	2.59 in	1.57 "	103 mm	40 °C	0 °C	0.594 lb	269.43 g	90 VAC	264 VAC	60 W	International	1.25 m	49.21 in	CE cULus	Multi-Blade (Sold Separately)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

24V 60 W AC/DC External Wall Mount (Class II) Adapter Multi-Blade (Sold Separately) Input
