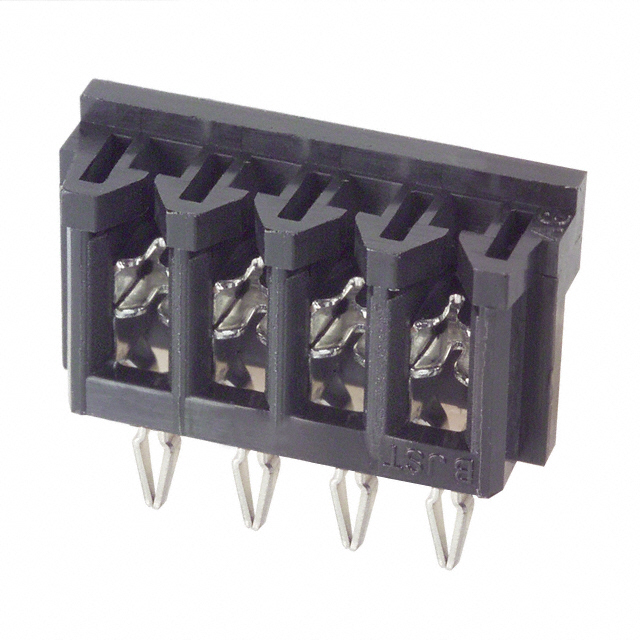

04DB-4K

Active

JST Sales America Inc.

CONN WIRE IDC 4POS 24-28AWG PCB

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN WIRE IDC 4POS 24-28AWG PCB

Technical Specifications

Parameters and characteristics for this part

Part	Cable Pitch	Cable Pitch	Connector Type	Board-Side Pitch	Board-Side Pitch	Features	Contact Finish	Number of Rows	Wire Gauge [Max]	Wire Gauge	Wire Gauge [Min]	Number of Positions	Mounting Type	Cable Termination	Number of Positions Loaded	Color
JST Sales America Inc. 04DB-8M(LF)	2.5 mm	0.098 in	Individual Wires	2.5 mm	0.098 in	Closed End	Tin-Lead	1	28 AWG	Stranded	24 AWG	4	Through Hole Press-Fit	IDC	All	Green
JST Sales America Inc. 04DB-4K	2.5 mm	0.098 in	Individual Wires	2.5 mm	0.098 in	Closed End	Tin-Lead	1	28 AWG	Stranded	24 AWG	4	Through Hole Press-Fit	IDC	All	Black
JST Sales America Inc. 04DB-6S	2.5 mm	0.098 in	Individual Wires	2.5 mm	0.098 in	Closed End	Tin-Lead	1	28 AWG	Stranded	24 AWG	4	Through Hole Press-Fit	IDC	All	White

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 0.20

General part information

4 Position Individual Wires Connector Black IDC 24-28 AWG, Stranded Through Hole, Press-Fit
