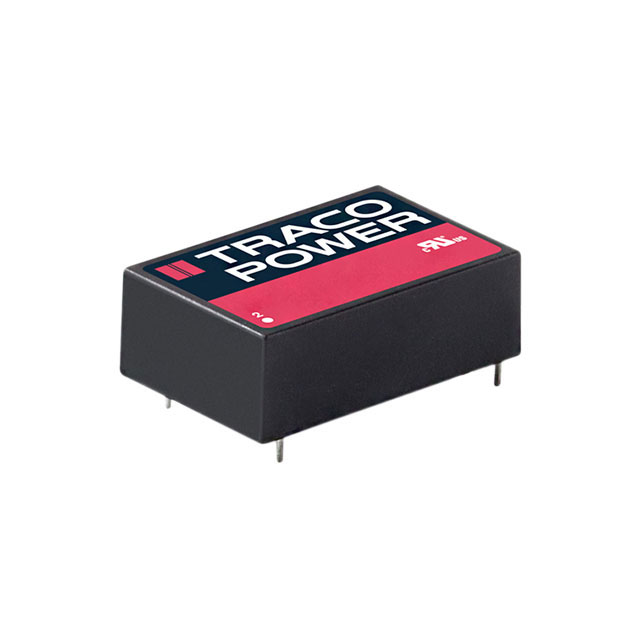

THM 10-2410

Active

Traco Power

DC DC CONVERTER 3.3V 8.3W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

THM 10-2410

Active

Traco Power

DC DC CONVERTER 3.3V 8.3W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	THM 10-2410

Applications	Medical
Approval Agency	CB, cURus
Current - Output (Max) [Max]	2.5 A
Efficiency	83 %
Features	SCP, OCP, OVP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-40 °C
Package / Case	24-DIP Module, 5 Leads
Power (Watts)	8.3 W
Size / Dimension [x]	31.8 mm
Size / Dimension [x]	1.25 "
Size / Dimension [y]	0.8 in
Size / Dimension [y]	20.3 mm
Size / Dimension [z]	0.4 "
Size / Dimension [z]	10.2 mm
Type	Isolated Module
Voltage - Input (Max) [Max]	36 V
Voltage - Input (Min) [Min]	18 V
Voltage - Isolation	5000 V
Voltage - Output 1	3.3 V

THM 10 Series

Part	Applications	Power (Watts)	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Efficiency	Voltage - Input (Max) [Max]	Voltage - Isolation	Package / Case	Voltage - Output 1	Type	Features	Voltage - Input (Min) [Min]	Number of Outputs	Current - Output (Max) [Max]	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output 2	Approval Agency	Current - Output (Max)	Current - Output (Max)
Traco Power THM 10-0515WI	Medical	10 W	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	85.5 %	9 V	5000 V	24-DIP Module 6 Leads	24 V	Isolated Module	OCP OVP SCP	4.5 V	1	416 mA	Through Hole	-40 °C	90 °C
Traco Power THM 10-2422	Medical	10 W	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	89 %	36 V	5000 V	24-DIP Module 6 Leads	12 V	Isolated Module	OCP OVP SCP	18 V	2	416 mA	Through Hole	-40 °C	90 °C	-12 V	CB cURus
Traco Power THM 10-4822WI	Medical	10 W	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	88 %	75 V	5000 V	24-DIP Module 6 Leads	12 V	Isolated Module	OCP OVP SCP	18 V	2	416 mA	Through Hole	-40 °C	90 °C	-12 V
Traco Power THM 10-1221	Medical	10 W	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	84 %	18 V	5000 V	24-DIP Module 6 Leads	5 V	Isolated Module	OCP OVP SCP	9 V	2		Through Hole	-40 °C	90 °C	-5 V	CB cURus	1 A	1 A
Traco Power THM 10-0511WI	Medical	10 W	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	84 %	9 V	5000 V	24-DIP Module 6 Leads	5 V	Isolated Module	OCP OVP SCP	4.5 V	1	2 A	Through Hole	-40 °C	90 °C
Traco Power THM 10-0511	Medical	10 W	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	84 %	9 V	5000 V	24-DIP Module 5 Leads	5 V	Isolated Module	OCP OVP SCP	4.5 V	1	2 A	Through Hole	-40 °C	90 °C		CB cURus
Traco Power THM 10-1212	Medical	10 W	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	88 %	18 V	5000 V	24-DIP Module 5 Leads	12 V	Isolated Module	OCP OVP SCP	9 V	1	830 mA	Through Hole	-40 °C	90 °C		CB cURus
Traco Power THM 10-2410	Medical	8.3 W	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	83 %	36 V	5000 V	24-DIP Module 5 Leads	3.3 V	Isolated Module	OCP OVP SCP	18 V	1	2.5 A	Through Hole	-40 °C	90 °C		CB cURus
Traco Power THM 10-2423WI	Medical	10 W	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	88 %	36 V	5000 V	24-DIP Module 6 Leads	15 V	Isolated Module	OCP OVP SCP	9 V	2		Through Hole	-40 °C	90 °C	-15 V		333 mA	333 mA
Traco Power THM 10-2415	Medical	10 W	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	89 %	36 V	5000 V	24-DIP Module 5 Leads	24 V	Isolated Module	OCP OVP SCP	18 V	1	416 mA	Through Hole	-40 °C	90 °C		CB cURus

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	10	$ 48.59

Description

General part information

THM 10 Series

Isolated Module DC DC Converter 1 Output 3.3V 2.5A 18V - 36V Input
