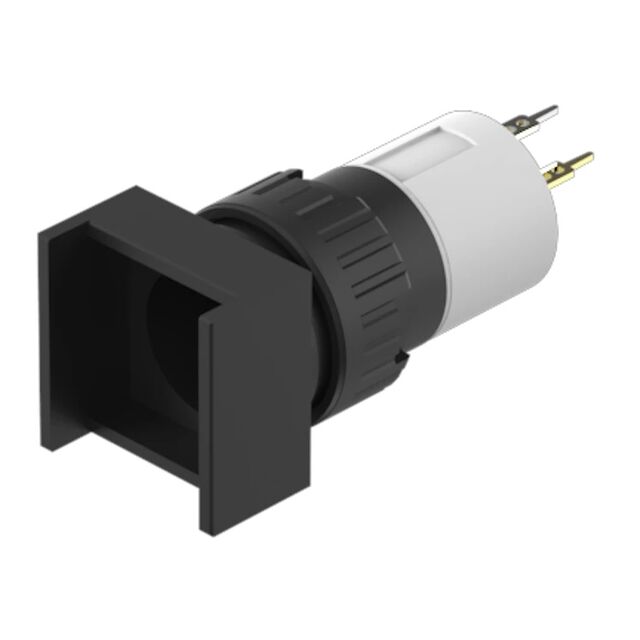

51-486.036

Active

EAO

PUSHBUTTON SWITCH, ON, SPST-NC, 42 V, 42 V, 100 MA

Search across all available documentation for this part.

Active

EAO

PUSHBUTTON SWITCH, ON, SPST-NC, 42 V, 42 V, 100 MA

Technical Specifications

Parameters and characteristics for this part

Specification	51-486.036

Actuator Marking	No Marking
Actuator Type	Square, Button (Not Included)
Circuit	SPST-NC
Current Rating (Amps)	100 mA
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	16 mm
Switch Function	On-Off
Termination Style	PC Pin, Solder Lug
Type	Standard
Voltage Rating - AC	42 V
Voltage Rating - DC	42 V

Part	Ingress Protection	Panel Cutout Dimensions [diameter]	Mounting Type	Mechanical Life	Circuit	Actuator Marking	Type	Current Rating (Amps)	Termination Style	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Switch Function	Voltage Rating - AC	Voltage Rating - DC
EAO 51-486.036	IP65 - Dust Tight Water Resistant	16 mm	Panel Mount Front	1000000 Cycles	SPST-NC	No Marking	Standard	100 mA	PC Pin Solder Lug	Square Button (Not Included)	55 °C	-25 °C	On-Off	42 V	42 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPST-NC Standard Panel Mount, Front
