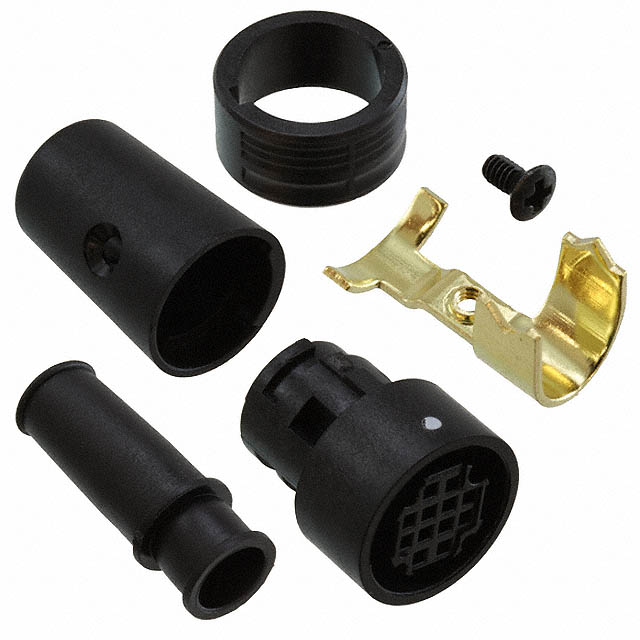

RP17-13JA-12SC(71)
ActiveHirose Electric USA, Inc.
CONN JCK HSG FMALE 12POS INLINE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RP17-13JA-12SC(71)
ActiveHirose Electric USA, Inc.
CONN JCK HSG FMALE 12POS INLINE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RP17-13JA-12SC(71) |
|---|---|
| Connector Type | Jack Housing |
| Contact Shape | Circular |
| Contact Size | 1.2 mm, 1.6 mm |
| Contact Size [custom] | 3, 9 |
| Contact Type | Crimp |
| Fastening Type | Push-Pull |
| Features | Backshell, Strain Relief, Cable Clamp |
| Housing Color | Black |
| Insert Material | Polycarbonate (PC) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 12 |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -10 °C |
| Orientation | Keyed |
| Shell Material | Polycarbonate (PC) |
| Shell Size - Insert | 13 |
| Shielding | Unshielded |
| Type | For Female Sockets |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 7.93 | |
| 10 | $ 7.17 | |||
| 25 | $ 6.77 | |||
| 50 | $ 6.61 | |||
| 200 | $ 6.28 | |||
| 400 | $ 5.61 | |||
| 600 | $ 5.28 | |||
| 1000 | $ 4.62 | |||
Description
General part information
RP17 Series
12 Position Circular Connector Jack Housing Free Hanging (In-Line) Backshell, Cable Clamp, Strain Relief
