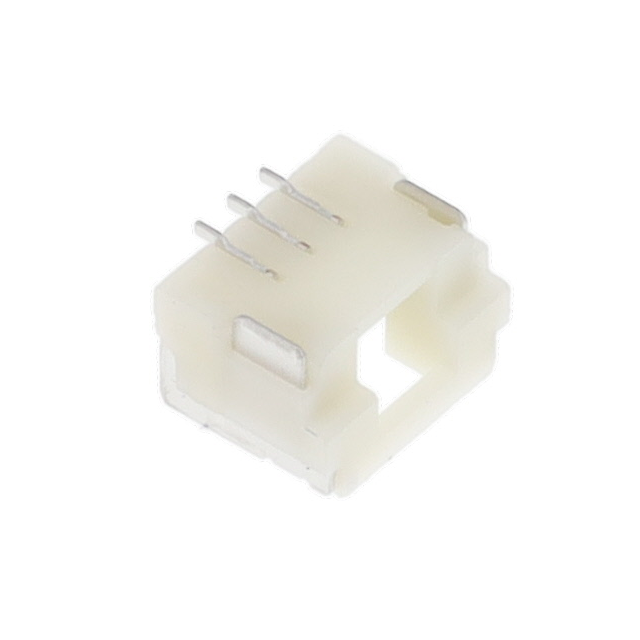

G880031112C1HR

Active

Amphenol ICC (Commercial Products)

WIRE TO BOARD 1.25MM PITCH,STR S

Search across all available documentation for this part.

Active

Amphenol ICC (Commercial Products)

WIRE TO BOARD 1.25MM PITCH,STR S

Technical Specifications

Parameters and characteristics for this part

Specification	G880031112C1HR

Connector Type	Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	2.54 çm
Contact Finish Thickness - Mating	100 çin
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Material	Copper Alloy
Contact Shape	Rectangular
Contact Type	Male Pin
Fastening Type	Latch Holder
Features	Solder Retention
Insulation Color	Natural
Insulation Height	0.173 in
Insulation Height	4.4 mm
Insulation Material	Nylon 6T, Polyamide (PA6T)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating	1.25 mm
Pitch - Mating	0.049 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	100 VAC

Part	Contact Shape	Contact Finish - Post	Contact Material	Features	Insulation Color	Fastening Type	Termination	Mounting Type	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Style	Contact Type	Insulation Material	Insulation Height	Insulation Height	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Shrouding	Number of Positions Loaded	Number of Rows	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type
Amphenol ICC (Commercial Products) G880031112C1HR	Rectangular	Tin	Copper Alloy	Solder Retention	Natural	Latch Holder	Solder	Surface Mount	1.25 mm	0.049 in	UL94 V-0	100 VAC	-25 °C	85 °C	Board to Cable/Wire	Male Pin	Nylon 6T Polyamide (PA6T)	0.173 in	4.4 mm	2.54 µm	100 µin	Shrouded - 4 Wall	All	1	2.54 çm	100 çin	Header

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Connector Header Surface Mount 3 position 0.049" (1.25mm)
